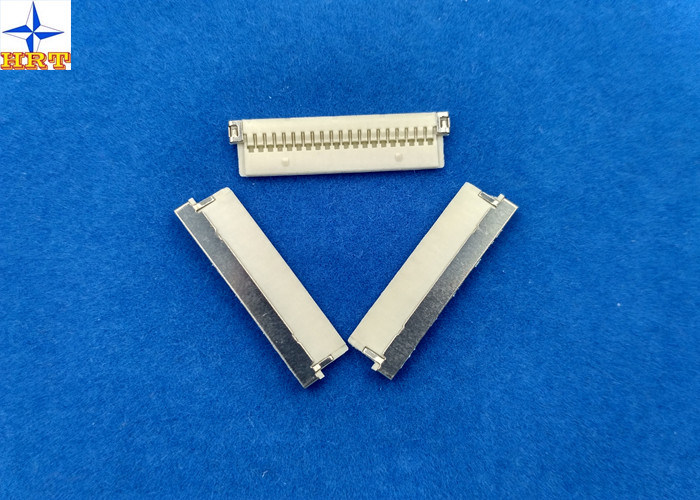

nicked-plated shell 0.039 inch pitch PA66 material crimp type DF19 wire to board connector

nicked-plated shell 0.039 inch pitch PA66 material crimp type DF19 wire to board connector

    • nicked-plated shell 0.039 inch pitch PA66 material crimp type DF19 wire to board connector
    • nicked-plated shell 0.039 inch pitch PA66 material crimp type DF19 wire to board connector
    • nicked-plated shell 0.039 inch pitch PA66 material crimp type DF19 wire to board connector
  • nicked-plated shell 0.039 inch pitch PA66 material crimp type DF19 wire to board connector

    Product Details:

    Place of Origin: Dongguan, China(mainland)
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A1007H-NP

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: USD0.001 to 0.5 per pcs
    Packaging Details: Bag with outside carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 500 K pcs per month
    Contact Now
    Detailed Product Description
    Suitable Terminals: A1007T Series Suitable Wafer: A1017W Series
    Wire Insulation Diameter: 0.60mm Max. Connector Type: Socket
    Flammability: UL94V-0 Row: Single
    High Light:

    Pcb To Wire Connectors

    ,

    Board To Wire Connectors

    1, The specification as below sheet



      Basic size information
    Color White
    Pitch 1.00mm
    Material PA9T
    Mating lock without
    Wire Termination Method Crimping
    Circuits 8pins/14pins/20pins/30pins
    Wire Insulation Diameter  0.60mm Max.
    Wire range AWG28# to 32#

                                                              Electrical properties
    Current Rating 1A AC, DC
    Voltage Rating 100V AC, DC
    Contact Resistance 30mΩ Max
    Insulation Resistance 500mΩ min
    Withstanding Voltage 500V AC/minute

                                                              Mechanical properties
    Temperature range -25℃ to 85 ℃
                               Other information please kindly check the following picture.



    2, Related drawing and report

    nicked-plated shell 0.039 inch pitch PA66 material crimp type DF19 wire to board connector



                                                                         Testing report



    1. Scope

    This specification covers the requirements for product performance of 1.00mm pitch wire to board

    connectors series.



    2. Construction,Dimensions,Material & Plating

    See the attached drawings





    3. Ratings & Applicable Wires



    Item Standard
    Rated Voltage (Max.) 100V AC/DC Insulation O.D. 0.60mm (Max.)
    Rated Current (Max.) And Applicable Wires AWG#28 1A AC/DC
    AWG#30 0.9A AC/DC
    AWG#32 0.8A AC/DC
    Ambient Temperature Range -25℃ ~ +85℃*

    *: Including terminal temperature rise



    4. Electrical Performance



    Test Description Procedure Requirement
    4-1



    Contact Resistance



    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 30mΩ (Max.)
    4-2 Insulation Resistance Mate connectors, apply 200V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 500MΩ (Min.)
    4-3 Dielectric Withstanding Voltage Mate connectors, apply 500V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
    4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 5mΩ (Max.)



    5. Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#28 1.0kgf (Min)
    AWG#30 0.8kgf (Min)
    AWG#32 0.5kgf (Min)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 0.50kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 0.50kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 0.30kgf (Min.)
    5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 60mΩ (Max.)
    5-7 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 60mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-8 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)





    6. Environmental Performance And Others



    Test Description Procedure Requirement
    6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
    6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

    Appearance No Damage.

    Contact Resistance 60mΩ (Max.)

    6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
    6-4 Humidity

    Temperature: 40±2℃

    Relative Humidity : 90~95%

    Duration: 96 hours

    (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

    Appearance No Damage.

    Contact Resistance 60mΩ (Max.)

    Insulation Resistance 10MΩ (Min.)

    Dielectric Withstanding Voltage Must meet 4-3

    6-5 Temperature Cycling

    5 cycles of:

    a) -55℃ 30 minutes

    b) +85℃ 30 minutes

    (Based upon JIS C0025)

    Appearance No Damage.

    Contact Resistance 60mΩ (Max.)

    6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
    6-7 SO2 Gas

    24 hours exposure to 50±5ppm.

    SO2 gas at 40±2℃.

    6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.
    6-9 Solderability

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 245±5℃

    Solder Wetting 95% of immersed area must show no voids, pin holes
    6-10 Resistance to Soldering Heat

    When reflowing

    Refer to paragraph 8

    Solder iron method

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 370℃ ~ 400℃

    Appearance No Damage.



    7. Actuator Insertion/Withdrawal Force

    [Unit : kgf]

    Circuits At Initial
    Insertion (Max.) Withdrawal (Min.)
    08 1.6 0.20
    14 2.8 0.35
    20 4.0 0.50
    30 6.0 0.75







    3, FAQ about our company

    1, Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
    A: Yes, We have product catalogue. Please contact us on line or send an Email to send the catalogue.

    2, Q: Do you have a price list? I need your price list of all your products.
    A: We do not have a price list of all of our products. Because we have so many items, and it's impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!

    3, Q: I can’t find the product on your catalogue, Can you make this product for me?
    A: Our catalogue shows most of our products, but not all. So just let us know what product do you need, and how many do you want. If we do not have it, we can also design and make a new mould to produce it. For your reference, making a ordinary mould will take about 20-35 days.



    4, Our Services

    Customizable specification drawing and material is avaiable.More than 12 years experience in conenctor, wire housing, wafer, terminals, other metal parts, etc. Products samples is free, you just need pay for the freight. Besides, we have a strict quality control systerm, so we are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth,BYD, LuXshare,etc.
