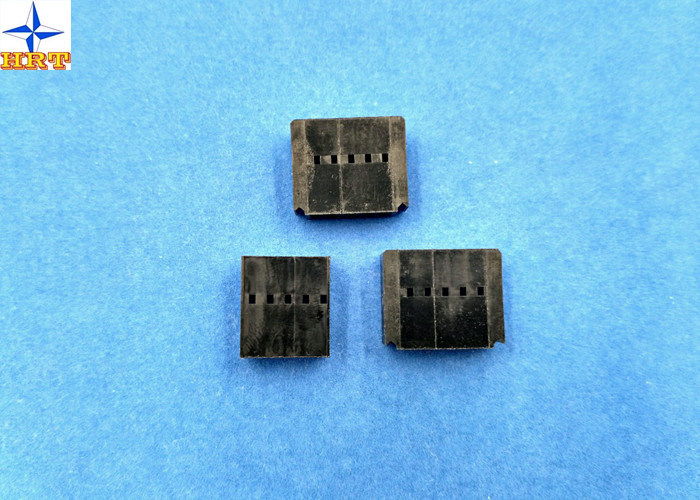

2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors

2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors

    • 2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors
    • 2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors
    • 2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors
  • 2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors

    Product Details:

    Place of Origin: Dongguan, China(mainland)
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A2541H-M-2*NP

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: USD0.001 to 0.5 per pcs
    Packaging Details: bag with outside paper carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    Contact Now
    Detailed Product Description
    Color: White Pitch: 2.54mm
    Materials: PA66, UL94V-0 Wire Range: AWG22# To 28#
    Packaging Type: Bag Application: Signal, Wire-to-Board

    1, Detailed specification table of product


    Detailed information




    Basic information

    TypeMale
    CircuitsFrom 2pins to 12 pins
    Insulation O.D.1.70mm(Max)
    Mating lockWith
    RowDouble
    Suitable WaferA2541W series wafer
    Matched TerminalsA2541-T-M series

    Electrical propertiesCurrent Rating3A AC, DC
    Voltage Rating250V AC, DC
    Contact Resistance20mΩ Max
    Insulation Resistance1000MΩ min
    Withstanding Voltage1500V AC/minute

    Mechanical propertiesTemperature range-25℃ to 85 ℃
      Other information please kindly check the following picture.



    2,  Corresponding engineering drawing & test report
    Below file is our engineering drawing and testing report for further information. It's sure that it will be a
    good reference for you to know this series parts clearly.
    2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors
    2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors
    2.54mm Pitch Battery Connecor with Lock Bump Double Row Male Header Crimp Connectors

    Mechanical Performance


    Test DescriptionProcedureRequirement
    5-1Actuator Insertion & Withdrawal ForceInsert and withdraw connectors at the speed rate of 25±3mm / minute.Refer to paragraph 7
    5-2Crimping Pull Out ForceFix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8)AWG#224.0kgf (Min)
    AWG#243.0kgf (Min)
    AWG#262.0kgf (Min)
    AWG#281.0kgf (Min)
    5-3Terminal Insertion Force.Insert the crimped terminal into the housing.1.50kgf (Max.)
    5-4Terminal/Housing Retention Force.Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing.2.00kgf (Min.)
    5-5Pin Retention ForceApply axial push force at the speed rate of 25±3mm / minute1.50kgf (Min.)
    5-6DurabilityWhen mated up to 50 cycles repeatedly by the rate of 10 cycle per minute.Contact Resistance 40mΩ (Max.)
    5-7Vibration

    Amplitude: 1.5mm P-P
    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.
    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.
    Contact Resistance 40mΩ (Max.)
    Discontinuity 1 μsec.(Max.)

    5-8Physical Shock490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)



    3, Why Choose us
    1). High Reputation: We are a professional & realiable electronics connector, wafer, termianl manufacturer with 12 years experience, who has owned high reputation in this field.

    2). Famous Exhibition: We are active in attending Exhibitions, like China Sourcing Fair in HongKong. We've built up business with lots of clients from all over the world.

    3). Visit us: Welcome to visit our factory facility, we will show you a competitive company with high quality & reasonable price.
