Payment & Shipping Terms:
|Product Name:||A1001 Series||Application:||Laptop, Monitor, LCD|
|Size Of Pitch:||1.00mm||Row:||Single/Dual|
|The Number Of Pin:||Single:02 To 20 Pin, Dual:2*05to2*20,2*25,2*30Pin||Material:||HSG:PBT/PA66, TER: Phosphor Bronze, Tin-plated|
|Environmental Protection Class:||ROHS / Reach /Halogen Free(HF)||Fire-protection Rating:||UL 94-V0|
Connector Wire To Board,
Pcb To Wire Connectors
1.00mm pitch wire to board connector single dual row 2 to 20 pin for Laptop

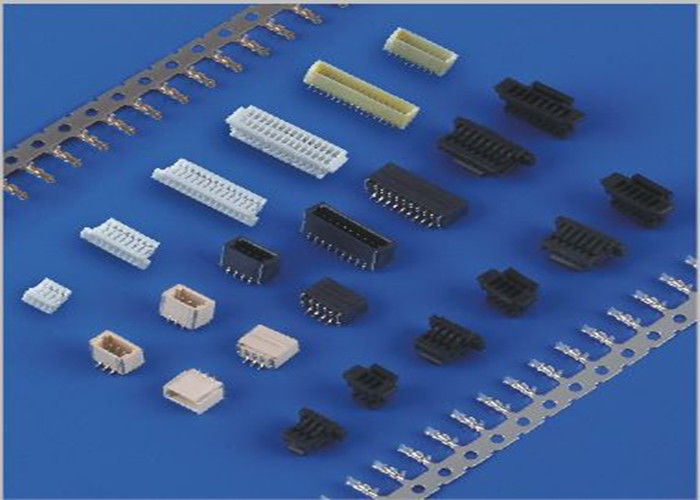

Wire to Board connector 1.00mm pitch housing/wafer/terminal A1001 series
|Current rating||1A AC, DC|
|Voltage rating||50V AC, DC|
|Withstanding voltage||500V AC/minute|
|Contact resistance||20 mΩ Max|
100 mΩ Min
|Temperature range:||-25℃ ~ +85℃|
|Rated Current (Max.) And Applicable Wire||AWG#28||1A||AC/DC|
|Actuator Insertion & Withdrawal Force||Insert and withdraw connectors at the speed rate of 25±3mm / minute.||Refer to paragraph 7|
|Crimping Pull Out Force||Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8)||AWG#28||1.0kgf (Min)|
|Terminal Insertion Force.||Insert the crimped terminal into the housing.||0.50kgf (Max.)|
|Terminal/Housing Retention Force.||Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing.||0.70kgf (Min.)|
|Pin Retention Force||Apply axial push force at the speed rate of 25±3mm / minute||0.50kgf (Min.)|
Actuator Insertion/Withdrawal Force
1, A1001series is divided into A1001H-NP-1,(single row housing), A1001H-2*NP, (dual row housing),A1001H-NP-2,(single row without protrusions housing),Terminal:A1001-TPE-A(used in A1001 series housings).
2, Housing used two kinds of raw materials: PBT and PA66(halogen free raw) , Fire-protection rating are both UL 94-V0.Halogen Free products are called:A1001H-NP-1-NL. Minimum packing quantity is 1000pcs/bag.
3. Single row housing from 2pins to 20pins,This product we have two molds and we can produce 50—100KPCS of this product every day. Dual row housing we have 2*15P,2*20P,2*25P three kinds ,The daily production capacity is 30 to 50 KPCS.
4. Terminals are stamped by Phosphor Broze, E-Stamping before Tin-plated or Gold-flash ,Tin-plated we calling A1001-TPe-A, Gold-plated we calling A1001-GPe-A,Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.
5. Terminals' wire range :AWG #28--#32,insulation OD is 0.80mm(Max),The thickness of gold-plating can be customer repuirements.Gold-flash:Au-0.8u, Ni: 20—40u, Gold-plated 3u: Au-3u,Ni:20-40u.
This product is mainly used for computer, laptop, LCD screen, TV SET and so on. Mainly used for signal transmission.
Contact Person: Ricky Zou
