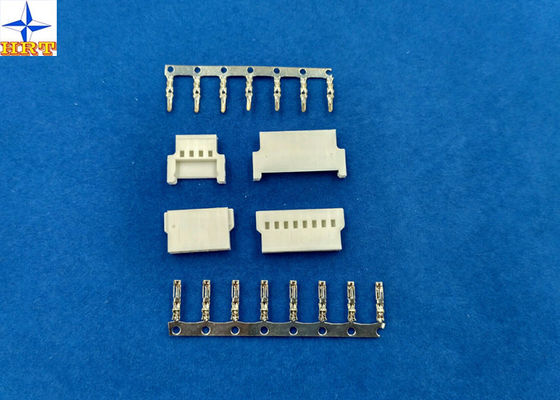

2.00mm Pitch Wire To Wire Connector Crimp Receptacle Housing For Molex 51005 / 51006

2.00mm Pitch Wire To Wire Connector Crimp Receptacle Housing For Molex 51005 / 51006

    • 2.00mm Pitch Wire To Wire Connector Crimp Receptacle Housing For Molex 51005 / 51006
    • 2.00mm Pitch Wire To Wire Connector Crimp Receptacle Housing For Molex 51005 / 51006
    • 2.00mm Pitch Wire To Wire Connector Crimp Receptacle Housing For Molex 51005 / 51006
  • 2.00mm Pitch Wire To Wire Connector Crimp Receptacle Housing For Molex 51005 / 51006

    Product Details:

    Place of Origin: Dongguan, China(mainland)
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: C2003HM-NP-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: USD0.001 to 0.5 per pcs
    Packaging Details: bag with outside paper carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    Contact Now
    Detailed Product Description
    Color: White Pitch: 2.00mm
    Materials: PBT, UL94V-0 Suitable Wafer: A2009W Series Wafer
    Packaging Type: Bag Application: Signal, Wire-to-Wire
    High Light:

    Crimp Terminal Connector

    ,

    Connector Crimp Terminal

    ,

    Molex 51005 Wire To Wire Connector

    Housing Electrical wafer connector 2.0 mm  Matched With PBT Materials C2003HM



    1, Specification excel of part



    Detailed information




    Basic size information

    Circuits From 2pins to 16pins
    Insulation O.D. 1.40mm(Max)
    Mating lock None
    Wire range AWG24# to 28#
    Halogen Free Nylon 66,UL94V-0
    Matched Terminals A2001-T series

    Electrical properties Current Rating 2A AC, DC
    Voltage Rating 125V AC, DC
    Contact Resistance 20mΩ Max
    Insulation Resistance 1000mΩ min
    Withstanding Voltage 500V AC/minute

    Mechanical properties Temperature range -25℃ to 85 ℃
      Other information please kindly check the following picture.





    2,  Corresponding engineering drawing & test report

    Below file is our engineering drawing and testing report for further information. It's sure that it will be a

    good reference for you to know this series parts clearly.

    2.00mm Pitch Wire To Wire Connector Crimp Receptacle Housing For Molex 51005 / 51006






    3, Why to choose us

    1. Strict quality control system

    2. Prompt delivery

    3. Small order acceptable and flexible MOQ

    4. Perfect craft procedure

    5. OEM or ODM project welcomed

    4, Our product family show

    Please kindly look the next picture, you can know our product range by an easy way. Our main product are wire housing, wire to board connectoor, wire to wire connector, board-in connectors, FPC/FFC connectors and more.
