| Place of Origin: | Dongguan, China(mainland) |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | C3030HMA-2XNP |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| Price: | USD0.001 to 0.5 per pcs |
| Packaging Details: | bag with outside paper carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 28 million pcs per month |
| Color: | Black | Application: | Power, Wire-to-Wire |
|---|---|---|---|
| Materials: | Nylon66 | Wire Range: | AWG24# To 20# |
| Max Positions: | 24 Circuits | Mated Terminals: | C3030M Series |
| High Light: | Connector Crimp Terminal,Board In Connector,3.0mm Pitch Female Power Connector |
||

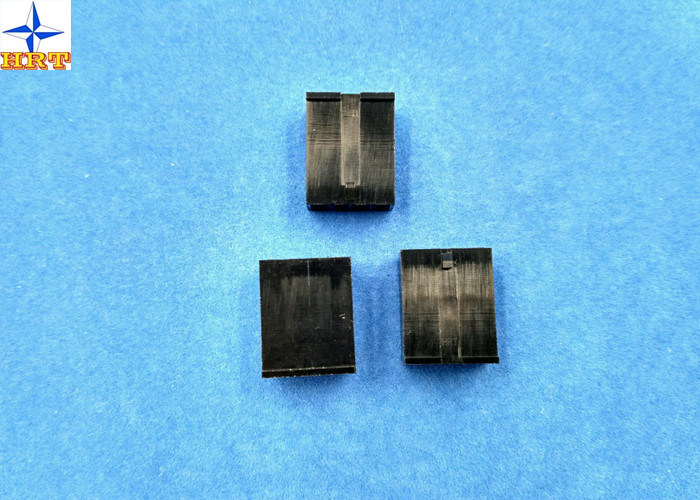

Dual row housing with pitch 3.0mm wire to wire connector female connector Nylon material
1, Detailed part information as below
1. Basic information:
2. Electrical characteristic:
3. Mechanical characteristic:
Other information please kindly check the following picture.
2, Introduction for this series products
Please kindly notice that the C3030 series product, you can buy it as a set, then we will offer you reasonable price.
Terminal: C3030F-T-A and C3030M-T
Connector: Male housing C3030HF-NP & C3030HF-2XNP &C3030HFA-2XNP
Female housing C3030HM-NP & C3030HMA-NP &C3030HM-2XNP & C3030HMA-2XNP
Wafer Vertical type C3030WV-F-NP &C3030WV-F-2XNP
Right angle type C3030WR-F-XP & C3030WR-F-2XNP
3, Related engineering drawing & testing report
Below file is our engineering drawing and testing report for further information. It's sure that it will be a
good reference for you to know this series parts clearly.
Dimension drawing
Testing report
The attached pictures can let you know the performance of this product well. You will make your decision quickly via it.
Environmental Performance And Others
| Test Description | Procedure | Requirement | |
| 6-1 | Temperature Rise | Carrying rated current load.(Based upon UL 498) | 30℃(Max.) |
| 6-2 | Heat Resistance | 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) |
| 6-3 | Cold Resistance | -25±3℃,96 hours (Based upon JIS C0020) | |
| 6-4 | Humidity |
Temperature: 40±2℃ Relative Humidity : 90~95% Duration: 96 hours (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) Insulation Resistance 100MΩ (Min.) Dielectric Withstanding Voltage Must meet 4-3 |
| 6-5 | Temperature Cycling |
5 cycles of: a) -55℃ 30 minutes b) +85℃ 30 minutes (Based upon JIS C0025) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) |
| 6-6 | Salt Spray | Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B) | |
| 6-7 | SO2 Gas |
24 hours exposure to 50±5ppm. SO2 gas at 40±2℃. |
|
| 6-8 | NH3 Gas | 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution. | |
4, Our advantage
1. We can ensure the fast delivery. The stock goods will be delivered within three days and the customized goods will be delivered within five days as soon as we checked the payment finished.
2.The products are all environmental safe products, no smell and non-fading.
3. All kinds of products passed ROHS,REACH UL approval
4.We are glad to make samples according to your drawings and specifications.
5.Used in the most of home applicances,computer,PCB,LCD,TV
6.Inspections:100% tested before delivery
7.Available for ODM/OEM order
8.Please contact us now, so we can offer you the best quality,competitive price and timely delivery.
