Place of Origin: | Dongguan, China(mainland) |
Brand Name: | HRT |
Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
Model Number: | A1002T |
Minimum Order Quantity: | 75K pcs |
---|---|
Price: | USD3 per kilo pcs |
Packaging Details: | paper tray with out carton |
Delivery Time: | 5 to 8 working days after payment checked |
Payment Terms: | TT, Western Union, PayPal, L/C |
Supply Ability: | 100 million pcs per month |
Color: | Yellow | Pitch: | 1.00mm |
---|---|---|---|
Material: | Phosphor | Wire Range: | AWG32# To 28# |
Finish: | Tin-plated Or Gold-flash | ||
High Light: | Crimp Wire Connectors,Connector Crimp Terminal |
1, The specification of the product including basic size information, electrical and mechanical properties.
Basic size information | |||
Termination Interface Style | crimp or compression | ||
Processing methods | E-stamping before tin-plated or gold-flashed | ||
Insulation O.D. | 0.80mm(Max) | ||
Part No. | A1002-TPE/A1002-GPE | ||
Application | signal | ||
Electrical properties | |||
Current Rating | 1A AC, DC | ||
Voltage Rating | 50V AC, DC | ||
Contact Resistance | 30mΩ Max | ||
Insulation Resistance | 100mΩ min | ||
Withstanding Voltage | 500V AC/minute | ||
Mechanical properties | |||
Temperature range | -25℃ to 85 ℃ | ||
Other information please kindly check the following picture. |
2, Related drawing and report

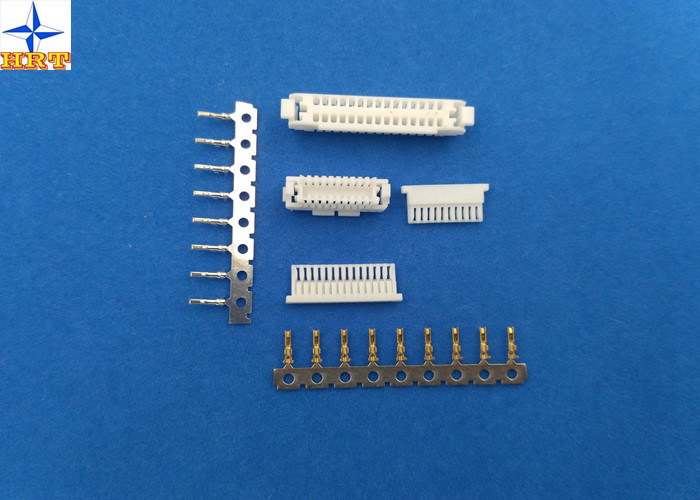

Developed for PDP, LCD or small electronics equipment. This is a dual-row small crimp type connector with a secure locking system or without-designed for different applications. The PC board layout is compatible withthat of existing SHD connector, which allows for replacement of the above existing connector. Please kindly check the following information:
5. Mechanical Performance
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
6. Environmental Performance And Others
7. Actuator Insertion/Withdrawal Force [Unit : kgf]
|
4, FAQ
Q:Do you allow multiple design per setup?
A:Yes.We accept OEM/ODM service and allow multiple design per setup.
Q:How long does shipping take?
A:It depends on the destination location and quantity. In most developed country, delivery by Fed x/UPS/DHL is normally 2-3 days(excluding weekends).
Q: How is the goods packaged ?
A: Usually in PE bads, tube, pipe and with outside carton box.
5, we can offer multiple, safe and fast shippment for you!
We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. Choose us! Let's connect the realistic and electronic world.
