| Place of Origin: | China |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | C7200 |
| Minimum Order Quantity: | 5000 PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Carton / Paper pots |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 1000 pcs per day |
| Product Name: | C7200 Housing | Pitch: | 7.20mm |
|---|---|---|---|
| The Number Of Pin: | 2PINS | Material: | HSG: PA66 TER: Brass Tin-plated |
| Row: | Single | Application: | Battery |
| Highlight: | PCB Battery Connector,6 Pin Connector |
||

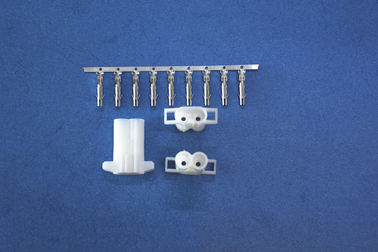

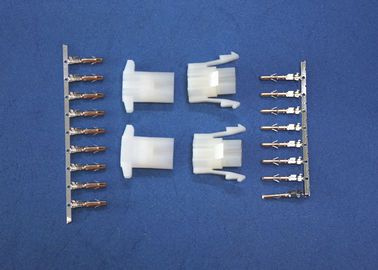

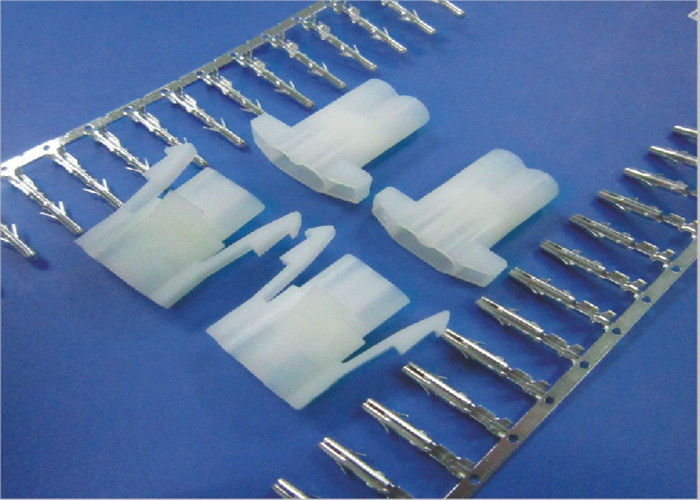

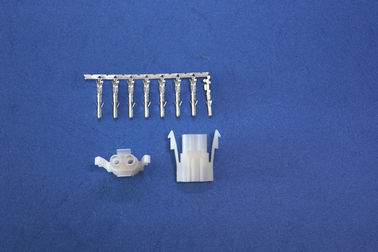

Pitch 7.20mm wire to wire battery terminal connector fmale or male housing
Description:
1,C7200series is divided into C7200HF-2P (single row male housing suitable C5080Fseries terminal) C7200HM-2P,single row female housing suitable C5080Mseries terminal ) Terminal:C5080F-TPE(used inC7200HF series housings)C5080M-TPE(used in C7200HM).
2, Housing s’ materials: PA66, Fire-protection rating are both UL 94-V2. Minimum packing quantity is 500pcs/bag.
3.Housing we have only 2Pin,The daily production capacity is 20 to 30 KPCS.
4.Terminals are stamped by Brass, E-Stamping before Tin-plated ,Tin-plated we calling C5080-TPe, Minimum packing quantity is 4,000pcs/Reel. The daily production capacity is 200 to 300 KPCS.
5.Terminals' wire range :AWG #18--#24 and AWG#14#20,insulation OD is2.5mm(Max) and3.3mm(Max).
