| Category: | PCB Board-in Connectors | Suitable Terminals: | B2011V Series |
|---|---|---|---|
| PC Board Mounting Direction: | Top Entry | Wire Range: | AWG24# To 30# |
| Flammability: | UL94V-0 | Row: | Single |
| High Light: | Circuit Board Connectors,Wire To Board Connector |
||

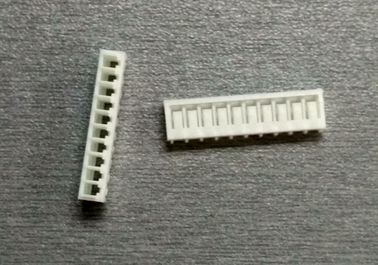

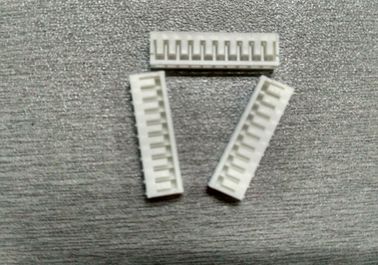

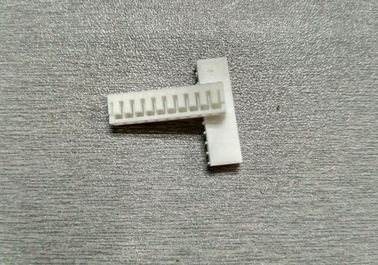

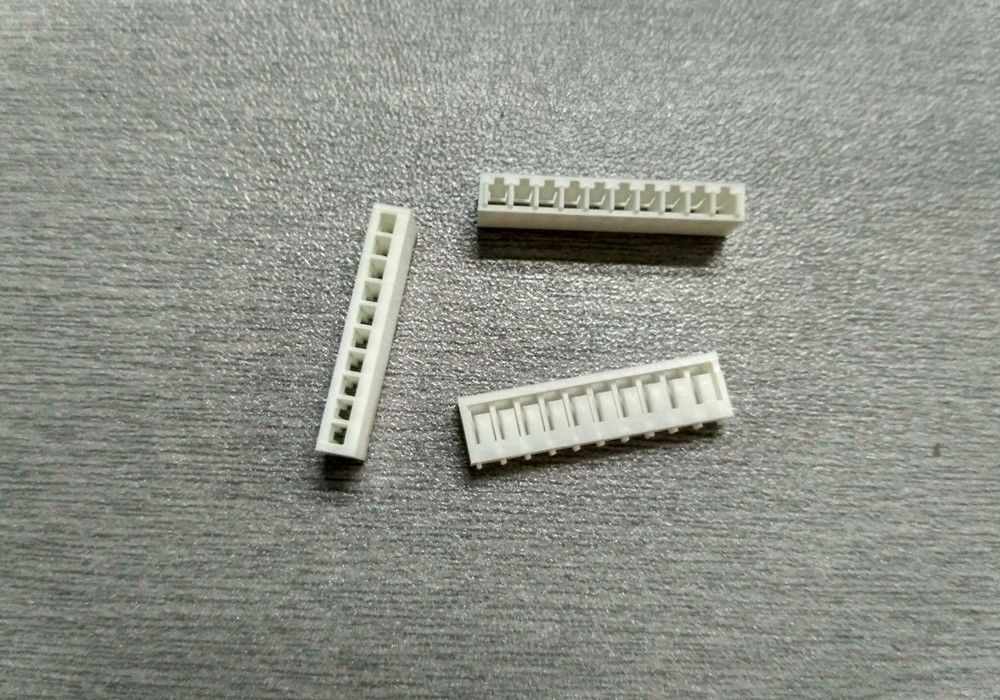

2.00mm pitch board-in housing 180° top entrance board to board connectors B2011HV-NP
1, The specification of the product including basic size information, electrical and mechanical properties.
| Basic size information | |||
| Color | white | ||
| Pitch | 2.0mm | ||
| Contacts type | vertical or right angle | ||
| Material | PA66 | ||
| Circuits | 2 to 15pins | ||
| Wire insulation diameter | 1.00mm Max. | ||
| Terminal material | Brass | ||
| Finish terminal | tin-plated | ||
| Electrical properties | |||
| Current Rating | 2A AC, DC | ||
| Voltage Rating | 250V AC, DC | ||
| Contact Resistance | 20mΩ Max | ||
| Insulation Resistance | 1000mΩ min | ||
| Withstanding Voltage | 800V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. | |||
2, The picture display of these series product
The picture is preparing for you, pls kindly waiting.
3, Related drawing and report
Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.
4, Application fied of product
This product is very ideal for VCRs, car stereo system, audio parts and many other consumer oriented electronics product. It is with strong structure against external force. And it is wildly seted in most of household appliance, computer, communication device. We also can controll defective rate under a low value, so our prodcut are welcomed and trusted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.
