| Place of Origin: | Dongguan, China(mainland) |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | F0551HA-NP |
| Minimum Order Quantity: | 5000pcs |
|---|---|
| Price: | USD0.01 to 5.0 per pcs |
| Packaging Details: | bags and carton or customized term |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 28000K pcs per month |
| Color: | Black | Pitch: | 0.50mm |
|---|---|---|---|
| Row: | Single | Material: | Nylon66 |
| Secure Lock Structure: | With | Matched Terminal: | FFC Cables |
| High Light: | FFC Cable Connector,FPC cable connector,0.20mm FFC Cables LVDS Connector |
||
1, The specification of the product including basic size information, electrical and mechanical properties.
| Basic size information | |||
| Color | black | ||
| Pitch | 0.5mm | ||
| Row | single | ||
| Lock | with | ||
| Positions | 41pins | ||
| Electrical properties | |||
| Current Rating: | 0.7A AC, DC | ||
| Voltage Rating | 100V AC, DC | ||
| Contact Resistance: | 50mΩ Max | ||
| Insulation Resistance: | 100mΩ | ||
| Withstanding Voltage: | 500V AC/minute | ||
| Mechanical properties | |||
| temperature range | -25℃ to 85 ℃ | ||
2, Related drawing and report

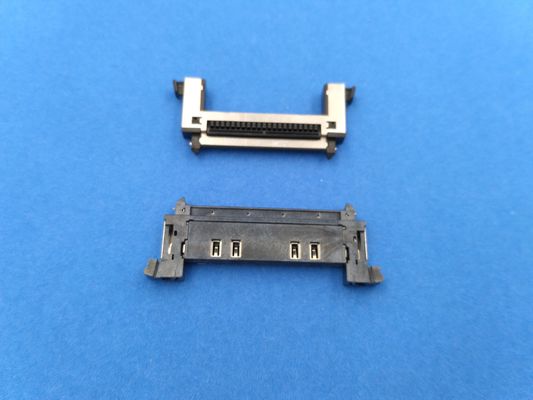

We wish the attached picture can help you to get our right parts.
3, Application fied of these product
This product are widely used in household appliance, computer, communication device. Because our product have very high quality, it is accepted by famouse manufacturer like Huawei, Skyworth, BYD etc. And the all are certificated by REACH, UL, RoHs. In order to protect the evironment, some parts are halogen free.
4, we can offer various fast delivery way for you .
We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. Choose us! Let's connect the realistic and electronic world.
