| Category: | Crimp Housings | Suitable Wafer: | A1501W Series |
|---|---|---|---|
| Suitable Terminals: | A1501T Series | Wire Range: | AWG22# To 28# |
| Lock To Mating Part: | Without | Gender: | Female |
| High Light: | Circuit Board Connections,Pcb Connectors Wire To Board |
||

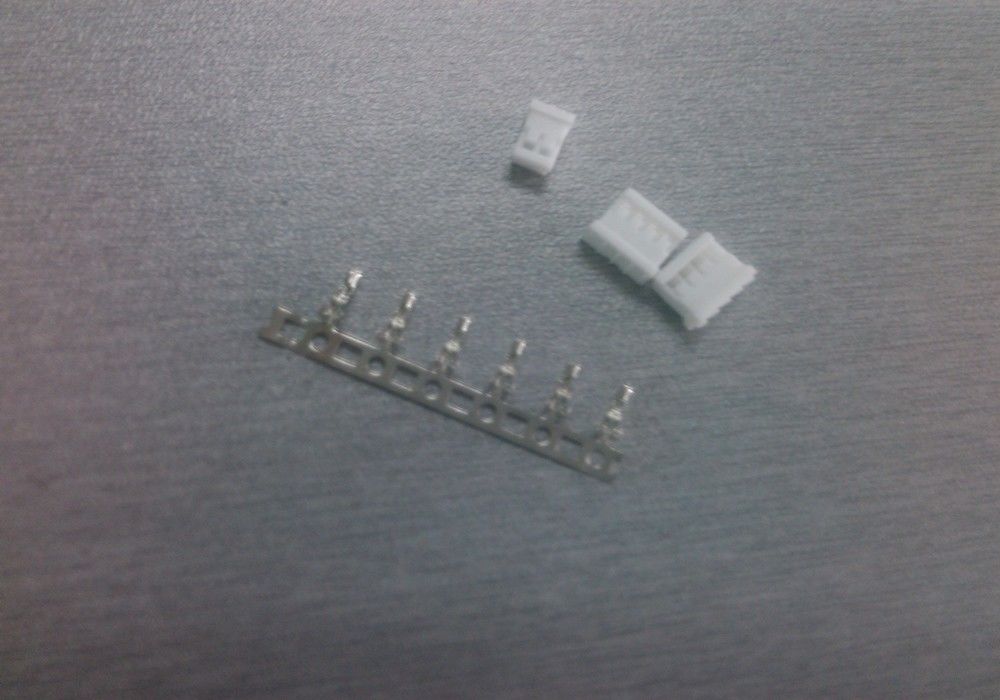

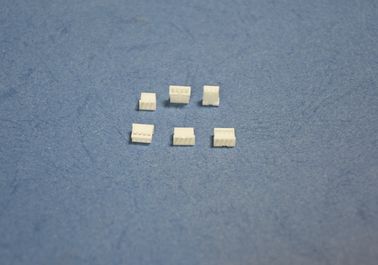

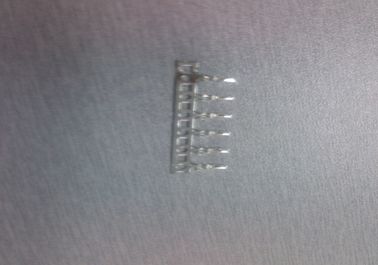

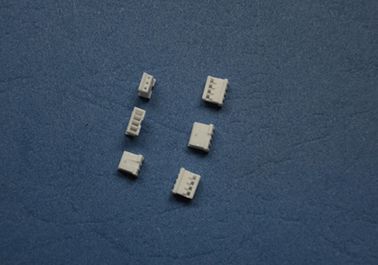

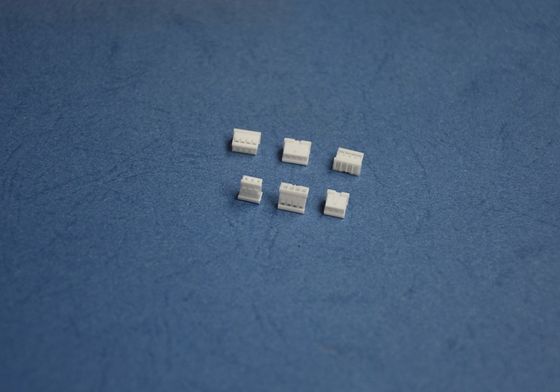

1.50mm Pitch pcb wire to board connector Smt Crimp Housings Without Lock A1501HNP
1, The detailed specification
| Basic size information | |||
| Material | PA66 | ||
| Application | signal, wire-to-board | ||
| Pitch | 1.50mm | ||
| Color | white | ||
| Row | single | ||
| Flammability | UL94V-0 | ||
| Circuits | 2 to 15 pins(position) | ||
| Wire insulation diameter | 1.15mm Max. | ||
| Terminal materials | phosphor bronze, tin-plated | ||
| Electrical characteristic | |||
| Current Rating: | 3.0 A AC, DC | ||
| Voltage Rating | 350 V AC, DC | ||
| Contact Resistance: | 20 mΩ Max | ||
| Insulation Resistance: | 1000 mΩ min | ||
| Withstanding Voltage: | 500V AC/minute | ||
| Mechanical characteristic | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. | |||
