2 to 15 Pins for Amp 175778 Side Entry Type 2.0mm Pitch Wafer Connector for PCB Connectors

2 to 15 Pins for Amp 175778 Side Entry Type 2.0mm Pitch Wafer Connector for PCB Connectors

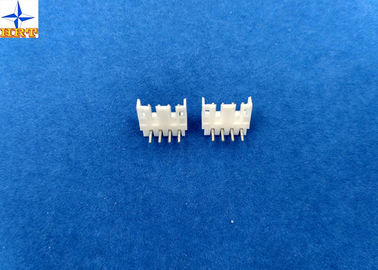

    • 2 to 15 Pins for Amp 175778 Side Entry Type 2.0mm Pitch Wafer Connector for PCB Connectors

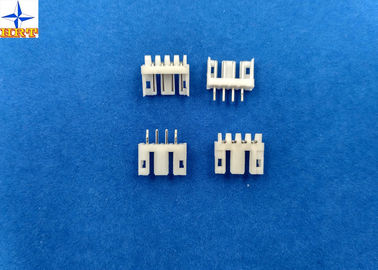

    • 2 to 15 Pins for Amp 175778 Side Entry Type 2.0mm Pitch Wafer Connector for PCB Connectors

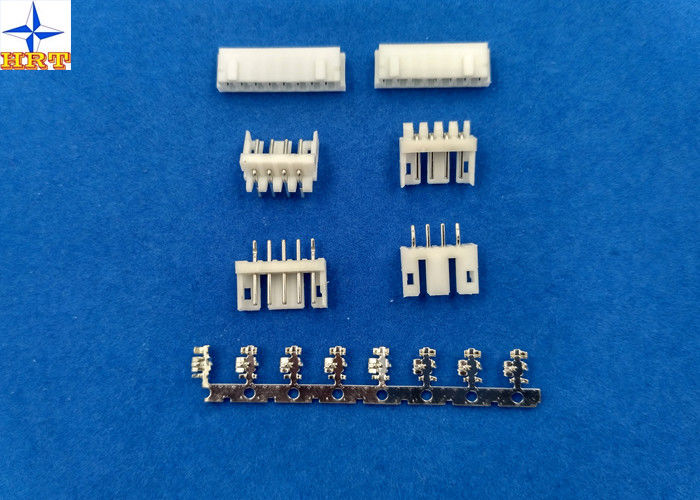

    • 2 to 15 Pins for Amp 175778 Side Entry Type 2.0mm Pitch Wafer Connector for PCB Connectors
  • 2 to 15 Pins for Amp 175778 Side Entry Type 2.0mm Pitch Wafer Connector for PCB Connectors

    Product Details:

    Place of Origin: Dongguan, China(mainland)
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A2013WR-NP

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: negotiated
    Packaging Details: Bag with outside carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 500K pcs per month
    Contact Now
    Detailed Product Description
    Color: Light-yellow Pitch: 2.00mm
    Mounting Type: Right Angle Wire Range: AWG 26# To 22#
    Flammability: UL94V-0 Row No.: Single
    High Light:

    Circuit Board Connectors

    ,

    PCB To PCB Connector



    2.0mm Pitch Wire To Board Connectors 2pins To 15 Pins With A2013T Series



    1, The specification of the product including basic size information, electrical and mechanical properties.



      Basic size information
    Suitable housing A1203 sereis
    Pin material

    Brass or Tin-plated

    Wafer materials PA66, UL94V-0
    Mating lock to part Without
    Wire Termination Method Crimping
    Circuits 2 to 15 pins
    Wire Insulation Diameter  1.50mm Max.
    Mounting side Standard on-Board
    Terminals material Phosphor bronze; tin-plated finish

                                                              Electrical properties
    Current Rating 4A AC, DC
    Voltage Rating 125V AC, DC
    Contact Resistance 10mΩ Max
    Insulation Resistance 1000mΩ min
    Withstanding Voltage 1000V AC/minute

                                                              Mechanical properties
    Operating temperature range -25℃ to 85 ℃
                               Other information please kindly check the following picture.



    2, Related drawing and report

    Drawings:

    2 to 15 Pins for Amp 175778 Side Entry Type 2.0mm Pitch Wafer Connector for PCB Connectors

    2 to 15 Pins for Amp 175778 Side Entry Type 2.0mm Pitch Wafer Connector for PCB Connectors

    2 to 15 Pins for Amp 175778 Side Entry Type 2.0mm Pitch Wafer Connector for PCB Connectors



    Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#22 4.0kgf (Min)
    AWG#24 3.0kgf (Min)
    AWG#26 2.0kgf (Min)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 1.50kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 1.50kgf (Min.)
    5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
    5-7 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 20mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-8 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)




    3, FAQ

    1) What's the delivery time?
    Usually 5-8 days after payment received, longer for large order.

    2) What’s the payment term?
    Our payment terms: T/T, PayPal, Western Union, Moneygram, L/C, etc.

    3) What's the shipping way?
    Via DHL, FedEx, EMS, UPS, by air, by sea...etc.

    4) Do you have after-sales service?
    Yes. 8 hours online service

    5) What is your guarantee for the goods?
    We will replace 1:1 for the defective goods after sales.12 months guarantee after manufacturing.
