Product Details:
Payment & Shipping Terms:
|

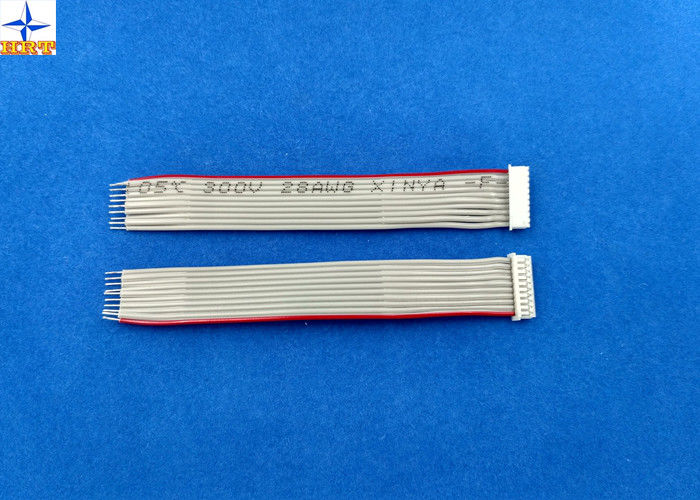

| Length: | 200mm | Wire Gauge: | AWG26# |
|---|---|---|---|
| Conductor: | Tinned Copper | Color: | Red & Grey |
| Pitch: | 1.25mm | Pin No.: | 8pin |
| Terminal: | Phosphor Bronze With Tin-plated | Application: | LED Device & Bar Connectors |
| High Light: | car wire harness assembly,electronic wiring harness |
||
| Brand | HRT |
| Condition | Make to order |
| MOQ | 1000 pieces |
| Size & Color | any size , color and materials according to the clients’requirement |
| Test | 100% before shipment |
| Price | Get latest price, Large quantity, discount more |
| Shipping | 7-15 days |
| Servies | (1)Receive rush order |
| (2) Every wire harness can be made accurate by your demands, changes to your drawing. | |
| (3) Accept customer’s request | |
| (4) You also could provide the pictures of the wire harness you like then we will manufacture them perfectly | |
| (5) We aim to offer 100% quality goods. | |
| (6) Keep smooth delivery on time | |
|
(7) free sample |
| 1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly |
| 2.Electrical cable and wire harness |
| 3.Audio,Video,Radio cable and iso wire harness |
| 4.Industrial wire cable harness |
| 5.Home appliance wire harness |
| 6.Fuse wire ,game machine wire harness |
| 7.Power,LVDs,Flat RCA,USB cable harness |
| 8.Control and panel wiring cable assemblies |
| 9.Medical equipment cable and harness |
| 10.Airplane models wire harness |
Mechanical Performance
| Test Description | Procedure | Requirement | ||
| 5-1 | Actuator Insertion & Withdrawal Force | Insert and withdraw connectors at the speed rate of 25±3mm / minute. | Refer to paragraph 7 | |
| 5-2 | Crimping Pull Out Force | Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) | AWG#28 | 1.0kgf (Min) |
| AWG#30 | 0.8kgf (Min) | |||
| AWG#32 | 0.5kgf (Min) | |||
| 5-3 | Terminal Insertion Force. | Insert the crimped terminal into the housing. | 0.50kgf (Max.) | |
| 5-4 | Terminal/Housing Retention Force. | Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. | 0.50kgf (Min.) | |
| 5-5 | Pin Retention Force | Apply axial push force at the speed rate of 25±3mm / minute | 0.50kgf (Min.) | |
| 5-6 | Durability | When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. | Contact Resistance 40mΩ (Max.) | |
| 5-7 | Vibration |
Amplitude: 1.5mm P-P Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes. (Based upon MIL-STD-202 Method 201A) |
Appearance No Damage. Contact Resistance 40mΩ (Max.) Discontinuity 1 μsec.(Max.) |
|
| 5-8 | Physical Shock | 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A) | ||
Application Fields
1) Our automotive Wire Harness are widely used in :Car Audio Harness, Car Alarm System, Car Mirror Harness, Steering Wheel Harness, HID Harness, OBD Diagnostic System, etc.
2)Our Electronic Harness are widely used in Game Machine Harness, Computer System Harness, Fuse Holder System, Elevator System, Power Cord, etc.
3) Our Industrial Wire Harness are widely used in various kinds of Industrial equipment.
4)Our Medical Harness are widely used in various kinds of medical devices.
5) Customized Wiring Harness.
FAQ
1) What's the delivery time?
Usually 5-8 days after payment received, longer for large order.
2) What’s the payment term?
Our payment terms: T/T, PayPal, Western Union, Moneygram, L/C, etc.
3) What's the shipping way?
Via DHL, FedEx, EMS, UPS, by air, by sea...etc.
4) Do you have after-sales service?
Yes. 8 hours online service
5) What is your guarantee for the goods?
We will replace 1:1 for the defective goods after sales.12 months guarantee after manufacturing.
