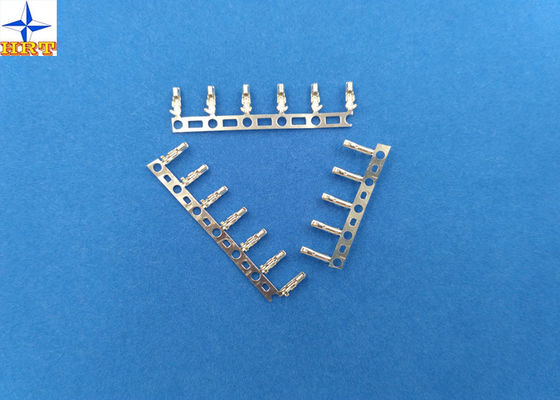

2.0mm pitch SPH-002T wire to board connector tin-plated phosphor crimp terminals

2.0mm pitch SPH-002T wire to board connector tin-plated phosphor crimp terminals

    • 2.0mm pitch SPH-002T wire to board connector tin-plated phosphor crimp terminals
    • 2.0mm pitch SPH-002T wire to board connector tin-plated phosphor crimp terminals
    • 2.0mm pitch SPH-002T wire to board connector tin-plated phosphor crimp terminals
  • 2.0mm pitch SPH-002T wire to board connector tin-plated phosphor crimp terminals

    Product Details:

    Place of Origin: dongguan, China(mainland)
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A2001-T

    Payment & Shipping Terms:

    Minimum Order Quantity: 100K PCS
    Price: Negotiated
    Packaging Details: paper tray with out carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 100 million pcs per month
    Contact Now
    Detailed Product Description
    Pitch: 2.0mm Wire Range: AWG#26 - #30
    Material: Phosphor Finish: Tin-plated Or Gold-flash
    Category: Terminal Insulation O.D: 1.30mm(Max)
    High Light:

    Crimp Terminal Connector

    ,

    Crimp Wire Connectors

    1, The specification of the product including basic size information, electrical and mechanical properties.



    Basic size information
    Termination Interface Style Crimp or compression
    Processing methods E-stamping before tin-plated or Gold-flash
    Insulation O.D. 1.30mm(Max)
    Part No. A2001-TPE or A2001-GPE
    Application Signal, PCB borad

    Electrical properties
    Current Rating 2A AC, DC
    Voltage Rating 100V AC, DC
    Contact Resistance 10mΩ Max
    Insulation Resistance 1000MΩ min
    Withstanding Voltage 800V AC/minute

    Mechanical properties
    Temperature range -25℃ to 85 ℃
    Other information please kindly check the following picture.





    2 Mated Hosuing information

    Product Profile
    Series Wire connector A2001H-NP & A2001HB-NP
    Category Wire to Board Crimp style Connectors
    Type Disconnectable type
    Crimp style, Thin type
    Specification
    Pitch 2.0 mm
    Current rating 2A AC,DC(AWG#26 to #30)
    Voltage rating 100V AC, DC
    PC board
    mounting direction
    Top entry, Side entry





    3, Related drawing and report



    The following pictures are engineering drawing and testing report for your reference, wish these can help you to purchase the ideal and right parts from us. Thank you!



    2.0mm pitch SPH-002T wire to board connector tin-plated phosphor crimp terminals

        2.0mm pitch SPH-002T wire to board connector tin-plated phosphor crimp terminals







    Testing report



    1. Scope

    This specification covers the requirements for product performance of 2.00mm pitch wire to board

    connectors series.





    2. Construction,Dimensions,Material & Plating

    See the attached drawings



    3. Ratings & Applicable Wires



    Item Standard
    Rated Voltage (Max.) 100V AC/DC Insulation O.D. 1.50mm (Max.)
    Rated Current (Max.) And Applicable Wires AWG#24 2.0A AC/DC
    AWG#26 1.5A AC/DC
    AWG#28 1.0A AC/DC
    AWG#30 0.5A AC/DC
    Ambient Temperature Range -25℃ ~ +85℃*

    *: Including terminal temperature rise



    4. Electrical Performance



    Test Description Procedure Requirement
    4-1



    Contact Resistance



    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 10mΩ (Max.)
    4-2 Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
    4-3 Dielectric Withstanding Voltage Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
    4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. 5mΩ (Max.)



    5. Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7-2
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#24 3.0kgf (Min)
    AWG#26 2.0kgf (Min)
    AWG#28 1.0kgf (Min)
    AWG#30 0.8kgf (Min)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.00kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 1.50kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 1.00kgf (Min.)
    5-6 Latch Yield Strength

    Mate connectors and pull apart until both latches break at the speed rate of

    25±3mm / minute

    3.00kgf (Min.)
    5-7 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
    5-8 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 20mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-9 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)





    6. Environmental Performance And Others



    Test Description Procedure Requirement
    6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
    6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

    Appearance No Damage.

    Contact Resistance 20mΩ (Max.)

    6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
    6-4 Humidity

    Temperature: 40±2℃

    Relative Humidity : 90~95%

    Duration: 96 hours

    (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

    Appearance No Damage.

    Contact Resistance 20mΩ (Max.)

    Insulation Resistance 100MΩ (Min.)

    Dielectric Withstanding Voltage Must meet 4-3

    6-5 Temperature Cycling

    5 cycles of:

    a) -55℃ 30 minutes

    b) +85℃ 30 minutes

    (Based upon JIS C0025)

    Appearance No Damage.

    Contact Resistance 20mΩ (Max.)

    6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B)
    6-7 SO2 Gas

    24 hours exposure to 50±5ppm.

    SO2 gas at 40±2℃.

    6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.
    6-9 Solderability

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 245±5℃

    Solder Wetting 95% of immersed area must show no voids, pin holes
    6-10

    Resistance to Soldering Heat

    (DIP)

    Solder pot method

    Soldering time: 10±0.5 sec.

    Solder Temperature: 260±5℃

    Solder iron method

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 370℃ ~ 400℃

    Appearance No Damage.
    6-11 Resistance to Soldering Heat (SMT)

    When reflowing

    Refer to paragraph 8

    Solder iron method

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 370℃ ~ 400℃

    Appearance No Damage.



    7. Crimp Specifications & Actuator Insertion/Withdrawal Force

    7-1 Terminals with height, suggestion pressure width and wire and terminal's retention



    Wire Diameter Numbers Conductor Parts(Core Wire)mm Insulation Parts(PVC)mm
    Width Height Width Height
    AWG#24 A2001 1.20±0.10 0.75±0.05 1.60(Max.) 2.00(Max.)REF.
    AWG#26 0.70±0.05
    AWG#28 0.65±0.05
    AWG#30 0.60±0.05



    7-2 WITHOUT A LOCK [Unit : kgf]

    Circuits At Initial Circuits At Initial
    Insertion (Max.) Withdrawal (Min.) Insertion (Max.) Withdrawal (Min.)
    Single 0.70 0.10 10 5.00 1.70
    02 1.00 0.50 11 5.50 1.70
    03 1.50 0.65 12 6.00 1.85
    04 2.00 0.80 13 6.00 2.00
    05 2.50 0.95 14 6.00 2.00
    06 3.00 1.10 15 6.00 2.00
    07 3.50 1.25 16 6.00 2.15
    08 4.00 1.40 17 6.00 2.15
    09 4.50 1.55 18 6.00 2.15



    7-3 LOCK [Unit : kgf]

    Circuits At Initial Circuits At Initial
    Insertion (Max.) Withdrawal (Min.) Insertion (Max.) Withdrawal (Min.)
    03 2.50 3.00 10 6.00 4.50
    04 3.00 3.00 11 6.50 4.50
    05 3.50 3.00 12 7.00 4.50
    06 4.00 3.00 13 7.50 5.00
    07 4.50 3.50 14 8.00 5.00
    08 5.00 4.00 15 8.00 5.00
    09 5.50 4.00 16 8.00 5.50
