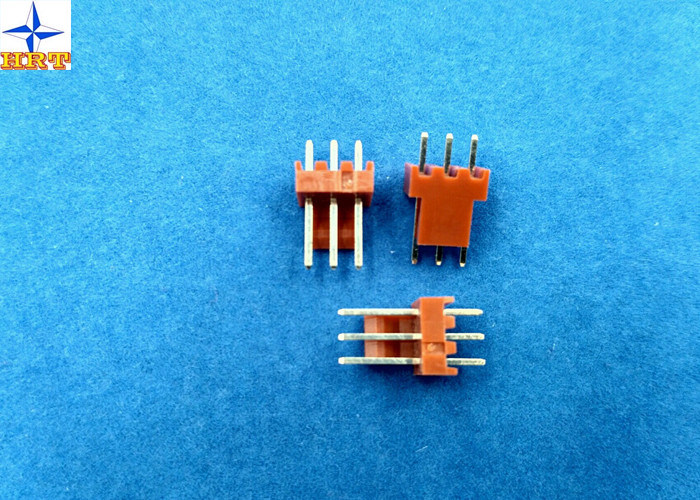

Single Row Wafer Connector Wire To Board Pitch 2.54mm Vertical Type Shrouded Header

Single Row Wafer Connector Wire To Board Pitch 2.54mm Vertical Type Shrouded Header

    • Single Row Wafer Connector Wire To Board Pitch 2.54mm Vertical Type Shrouded Header
    • Single Row Wafer Connector Wire To Board Pitch 2.54mm Vertical Type Shrouded Header
    • Single Row Wafer Connector Wire To Board Pitch 2.54mm Vertical Type Shrouded Header
  • Single Row Wafer Connector Wire To Board Pitch 2.54mm Vertical Type Shrouded Header

    Product Details:

    Place of Origin: China
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A2542

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 PCS
    Price: Negotiated
    Packaging Details: Carton / Paper pots
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 1000 pcs per day
    Contact Now
    Detailed Product Description
    Product Name: A2542WV Series Wafer Pitch: 2.54mm
    The Number Of Pin: 02pin ~20pin Material: Wafer: PA66 PIn:Brass /Tin-plated
    Row: Single Fire-protection Rating: UL 94V-2
    Mates With: A2542 Series Housing
    High Light:

    Housing Connector

    ,

    Board In Connector



    Wire to board connector pitch 2.54mm single row 180° wafer connector



    Description:



    1, A2542  WV series Wafer  have A2542WV-NP,A2542WVA-NP ,A2501WVB-NP (Mates with A2542 series  housing) .

    2, Wafer used materials: PA66,Pin:Brass /Tin-plated , Fire-protection rating is UL 94-V-0/2Minimum packing quantity is 1000pcs/bag.





    Specifications:

    Test Description Procedure Requirement

    Contact Resistance

    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 10mΩ (Max.)
    Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
    Dielectric Withstanding Voltage Mate connectors, apply 1000V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
    Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.. 5mΩ (Max.)





    Electrical:



    Voltage rated 250V AC ,DC
    Current rated 4A  AC,DC
    Withstand voltage 1000VAC/minute
    Insulation resistance 1000MΩ Min
    Contact resistance 10mΩ Max
    Operating temperature -25°C~85°C



    Quality:



    The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit

    Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
    step are doing by ourself. So we can control the quality.



    1. Manufactured under strict controls.

    2. ISO 9001:2008

    3. UL Certification

    4. Reach Cetitifaction

    5. RoHS compliance

    6. OEM for PULSE

    7. Active Environmental policy

    8. Every module tested 3times (not just batch tested)



    Drawing:



    Single Row Wafer Connector Wire To Board Pitch 2.54mm Vertical Type Shrouded HeaderSingle Row Wafer Connector Wire To Board Pitch 2.54mm Vertical Type Shrouded HeaderSingle Row Wafer Connector Wire To Board Pitch 2.54mm Vertical Type Shrouded Header



    Service:

    Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .



    HRT Offer good pre-sales & after-sales service &Strong technical support

    1. New Project: Strong technical and ideal support your new design

    2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

    3. time.

    4. Free Samples:10~20 PCS of each part number

    5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

    6. Customer complaint:24-48 hours reply 8D report

    7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement, or repair

    8. kits if customers are not satisfied)

    Contact Details
    RULETEAM CONNECTION TECHNOLOGY (SHENZHEN) CO.,LTD

    Contact Person: Tienne Chen

    Tel: +8613711905178
