| Place of Origin: | China |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A2542 |
| Minimum Order Quantity: | 5000 PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Carton / Paper pots |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 1000 pcs per day |
| Product Name: | A2542WR Series Wafer | Pitch: | 2.54mm |
|---|---|---|---|
| The Number Of Pin: | 02pin ~20pin | Material: | Wafer: PA66 PIn:Brass /Tin-plated |
| Row: | Single | Fire-protection Rating: | UL 94V-2 |
| Mates With: | A2542 Series Housing | ||
| High Light: | Wafer Connector 2.0mm,Board In Connector |
||

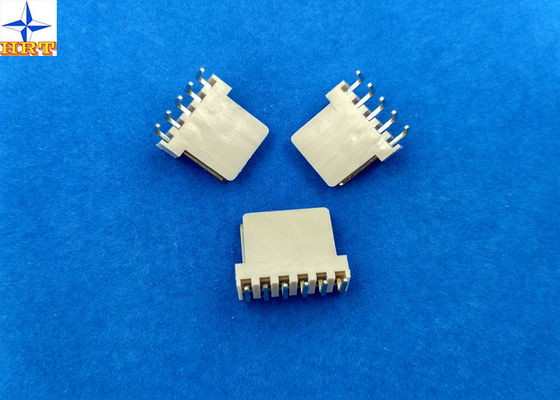

Wire to board connector pitch 2.54mm single row 90° wafer connector
Description:
1, A2542 WR series Wafer have A2542WR-NP-1/2,A2542WR-NP-A/B ,A2501WRA-NP A2542WRB-NP (Mates with A2542 series housing) .
2, Wafer used materials: PA66,Pin:Brass /Tin-plated , Fire-protection rating is UL 94-V-0/2Minimum packing quantity is 1000pcs/bag.
Specifications:
| Test Description | Procedure | Requirement |
|
Contact Resistance |
Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) | 10mΩ (Max.) |
| Insulation Resistance | Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) | 1000MΩ (Min.) |
| Dielectric Withstanding Voltage | Mate connectors, apply 1000V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) | No Breakdown. |
| Contact Resistance on Crimped Portion | Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.. | 5mΩ (Max.) |
Electrical:
| Voltage rated | 250V AC ,DC |
| Current rated | 4A AC,DC |
| Withstand voltage | 1000VAC/minute |
| Insulation resistance | 1000MΩ Min |
| Contact resistance | 10mΩ Max |
| Operating temperature | -25°C~85°C |
Quality:
The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit
Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.
1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)
Drawing:
Service:
Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .
HRT Offer good pre-sales & after-sales service &Strong technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save
3. time.
4. Free Samples:10~20 PCS of each part number
5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
6. Customer complaint:24-48 hours reply 8D report
7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement, or repair
8. kits if customers are not satisfied)
