|Place of Origin:||Dongguan, China(mainland)|
|Minimum Order Quantity:||5000 pcs|
|Packaging Details:||Bag with outside carton|
|Delivery Time:||5 to 8 working days after payment checked|
|Payment Terms:||TT, Western Union, PayPal, L/C|
|Supply Ability:||500 K pcs per month|
|Suitable Housing:||A1253H Series||Package:||Tube Or Pipe|
|Wire Termination Method:||Crimping||Wire Range:||AWG26# To 32#|
|Circuits:||2pins To 30pins||Row:||Single|
Board In Connector

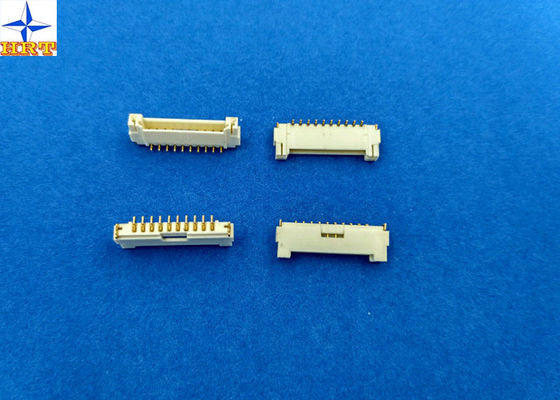

1.25mm pitch SMT type wafer connector right angle 90° mounting type with Boss
1, The specification of product
|Basic size information|
|Mating postion gel(foot)||With|
|Mounting methods||Right angle|
|Material of wafer plastic||Nylon9T|
|Pin material||Brass or tin-plated|
|Solder tabs||Brass or tin-plated|
|Wire Insulation Diameter||1.00mm Max.|
|Mounting side||Standard on-Board|
|Terminals material||phosphor bronze, tin-plated/gold-flash finish|
|Current Rating||1A AC, DC|
|Voltage Rating||150V AC, DC|
|Contact Resistance||30mΩ Max|
|Insulation Resistance||500mΩ min|
|Withstanding Voltage||500V AC/minute|
|Operating Temperatureemperature range||-25℃ to 85 ℃|
|Terminal Insertion Force||0.80kgf (Max.)|
|Terminal/Housing Retention Force||0.50kgf (Min.)|
|Pin Retention Force||0.50kgf (Min.)|
|Other information please kindly check the following picture.|
2, Related drawing and report
3, Introduction for this series products
Please kindly notice that the A1253 series product, if you can buy this product as a set, the price will be very reasonale and favorable.
1, Terminals:A1253-T & A1253-T-A
2, Housing: With lock type: A1253H-NP; Without lock type: A1253HA-NP
3, Wafer: Right angle type(90°):A1253WR-S-NP & A1253WR-SF-NP & A1253WRA-S-NP
Vertical type(180°): A1253WVA-S-NP
Q1: Are you manufacturer or trading company?
A: We are a manufacturer with 12 years experience professional manufacturing company which
specializes in producing, research and development, sales of variety of electronic
connectors, terminals, wafer etc.
Q2: How to control the quality of your products?
A: Quality is life of our company. The QC staff control each procedure as per ISO9001
program. All part are100% tested before shipping.
Q3: Where is your factory located, and how can we visit there?
A: Our company is located in Dongguan city, Guangdong Province, China. It is close to
Q4: How can I get the sample?
A: The sample is for free,but the transportation fee will be beared by customers.
Q5: What are your products applied to?
A: Our products are applied to automotive use, conmmunication equipment, industrial use,
household appliance, electronics, etc.
5, Various payment & delivery way
In order to make you get product quickly and send money easily, we can offer differenct payment terms
|Total value of order(Currency: USD )||Suggested payment terms|
|Less than USD350||PayPal or Wester Union|
|Between USD350 and USD500||Western Union|
|Between USD500 and USD5000||TT|
|Over USD5000||TT or L/C at sight|
The commision fee of TT/PayPal/ Letter of credit will be shared by us together.
