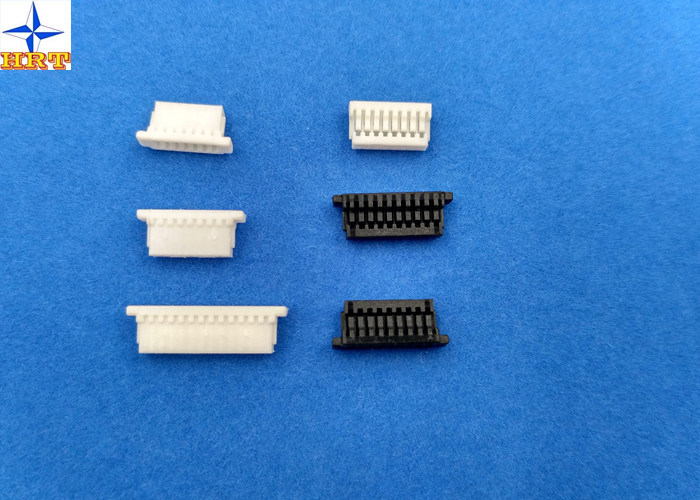

1.0mm Pitch Single Row Pcb Wire To Board Connectors , SH / SHD Connector

1.0mm Pitch Single Row Pcb Wire To Board Connectors , SH / SHD Connector

    • 1.0mm Pitch Single Row Pcb Wire To Board Connectors , SH / SHD Connector
    • 1.0mm Pitch Single Row Pcb Wire To Board Connectors , SH / SHD Connector
    • 1.0mm Pitch Single Row Pcb Wire To Board Connectors , SH / SHD Connector
  • 1.0mm Pitch Single Row Pcb Wire To Board Connectors , SH / SHD Connector

    Product Details:

    Place of Origin: Dongguan, China(mainland)
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A1001H-NP-1/-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: negotiated
    Packaging Details: Bag with outside paper carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    Contact Now
    Detailed Product Description
    Catogery: Wire Housing Gender: Female
    Material: PBT UL94V-0 Or PA66 UL94-V0 Wire Range: AWG28# To 32#
    Pitch: 1.00mm Suitable Wafer: A1001 Series Single Row
    High Light:

    Printed Circuit Board Connectors

    ,

    Pcb Connectors Wire To Board

    ,

    SHD Wire To Board Connectors

    1, The specification of the product including basic size information, electrical and mechanical characteristic.



      Basic size information
    Circuits from 2pins to 24pins
    Color white or black
    Material PBT UL94V-0
    Halogen free Nylon66 UL 94V-0
    Wire Insulation Diameter  0.80mm max.

                                                              Electrical characteristic
    Current Rating 1A AC, DC
    Voltage Rating 50V AC, DC
    Contact Resistance 20mΩ Max
    Insulation Resistance 100mΩ min
    Withstanding Voltage 500V AC/minute

                                                              Mechanical characteristic
    Temperature range -25℃ to 85 ℃
                               Other data please kindly check the below pictures.



    2, Related drawing and report



    1.0mm Pitch Single Row Pcb Wire To Board Connectors , SH / SHD Connector





    3, FAQ


    1, Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products ?
    A: Yes, We have product catalogue. Please contact us on line or send an Email to sending the
    catalogue.

    2, Q: Do you have a price list ? I need your price list of all your products.
    A: We do not have a price list of all of our products. Because we have so many items,and it’s
    impossible to mark all of their price on a list. And the price are always changing because of
    the producing cost. If you want to check any price of our products, please feel free to contact
    us. We will send offer to you soon!

    3, Q: I can’t find the product on your catalogue, Can you make this product for me?
    A: Our catalogue shows most of our products, but not all. So just let us know what product do you
    need , and how many do you want . If we do not have it , we can also design and make a new
    mould to produce it. For your reference, making a ordinary mould will take about 35-45days.


    4, Q: Can you provide samples? Are the samples free?
    A: Yes, we can provide samples. Normally, we provide 5 to 10pcs free samples for testing or quality
    checking. But you have to pay for the shipping cost.
