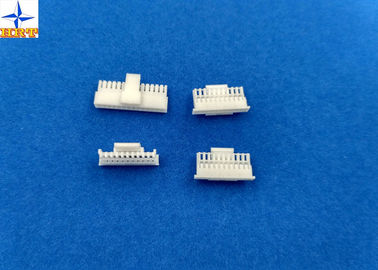

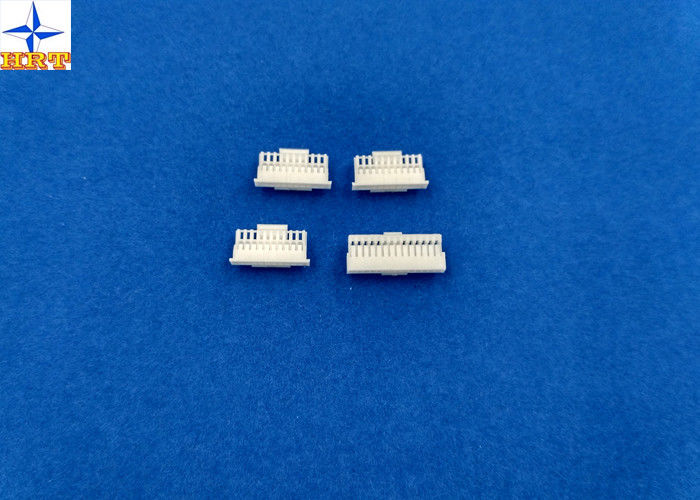

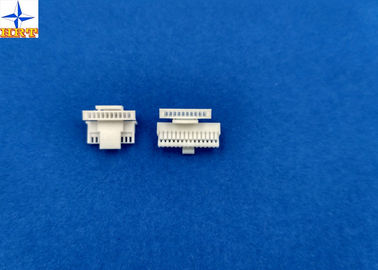

Pitch 1.00mm Wire To Board Connectors With Lock PA66 CI16 Wire Housing

Pitch 1.00mm Wire To Board Connectors With Lock PA66 CI16 Wire Housing

    • Pitch 1.00mm Wire To Board Connectors With Lock PA66 CI16 Wire Housing
    • Pitch 1.00mm Wire To Board Connectors With Lock PA66 CI16 Wire Housing
    • Pitch 1.00mm Wire To Board Connectors With Lock PA66 CI16 Wire Housing
  • Pitch 1.00mm Wire To Board Connectors With Lock PA66 CI16 Wire Housing

    Product Details:

    Place of Origin: China
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A1017

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 PCS
    Price: Negotiated
    Packaging Details: Carton / Paper pots
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 1000 pcs per day
    Contact Now
    Detailed Product Description
    Product Name: A1017HA-NP With Lock Housing Pitch: 1.00mm
    Mates With: A1017W Series Wafer Material: PA66
    Suitable: A1017T Series Terminal Fire-protection Rating: UL 94V-0
    Connector Type: Wire To Board Connnector Color: White
    High Light:

    Printed Circuit Board Connectors

    ,

    Pcb Connectors Wire To Board

    ,

    Pitch 1.00mm Wire To Board Connectors

    Description:



    1. A1017series have  A1017HA-NP (single row housing suitable A1017series terminal) a1017HA-NP-1,

    2, Housing s’ materials: PA66, Fire-protection rating are both UL 94-V2. Minimum packing quantity is 500pcs/bag.

    3. Housing we have 2Pin  to 20Pin,The daily production capacity is 20 to 30 KPCS.



    Quality:



    The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers  with high efficiency service  responsibility, forge ahead, the endess pursuit

    Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
    step are doing by ourself. So we can control the quality.



    1. Manufactured under strict controls.

    2. ISO 9001:2008

    3. UL Certification

    4. Reach Cetitifaction

    5. RoHS compliance

    6. OEM for PULSE

    7. Active Environmental policy

    8. Every module tested 3times (not just batch tested)





    Test Description Procedure Requirement

    Contact Resistance

    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)    20mΩ (Max.)
    Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)    1000MΩ (Min.)
    Dielectric Withstanding Voltage Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301))    No Breakdown.
    Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.     5mΩ (Max.)



    Electrical:



    Current rated
         1A AC/DC maximum
    Voltage rated       120V AC/DC
    Withstand voltage      500V AC/minute
    Insulation resistance      100MΩ min
    Contact resistance      20MΩ max
    Operating temperature      -25 - 85°C



    Drawing:

    Pitch 1.00mm Wire To Board Connectors With Lock PA66 CI16 Wire Housing

    Pitch 1.00mm Wire To Board Connectors With Lock PA66 CI16 Wire Housing

    Pitch 1.00mm Wire To Board Connectors With Lock PA66 CI16 Wire Housing



    Production&Testing

    HRT have more than 30 units automation equipments to product as possible
    HRT Every Magnetic RJ45 tested 3times (not just batch tested)
    HRT Every SMT part used Automation testing and packing.




    Pitch 1.00mm Wire To Board Connectors With Lock PA66 CI16 Wire Housing

                                                                     Punching

    Service:



    Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .



    HRT Offer good pre-sales & after-sales service &Strong technical support

    1. New Project: Strong technical and ideal support your new design

    2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

    3. time.

    4. Free Samples:3-5 PCS of each part number

    5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

    6. Customer complaint:24-48 hours reply 8D report

    7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,,or repair

    8. kits if customers are not satisfied)
