| Place of Origin: | Dongguan, China(mainland) |
| Brand Name: | Black |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |

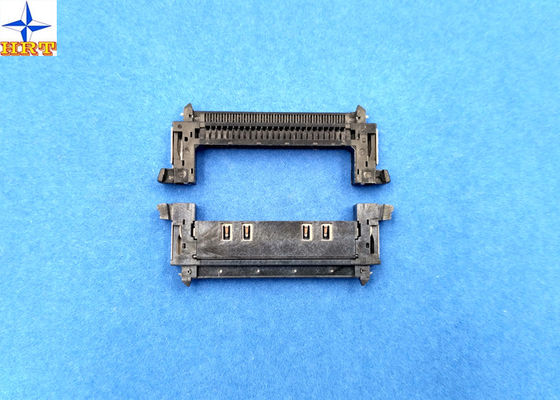

| Model Number: | F0501WR-S-51P |
| Minimum Order Quantity: | 5000pcs |
|---|---|
| Price: | USD0.25 per pcs |
| Packaging Details: | pipe and carton or customized term |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 200,000 pcs per month |
| Color: | Light Yellow | Pitch: | 0.50mm |
|---|---|---|---|
| Row: | Single | Material: | LCP |
| Secure Lock Structure: | With | Matched Terminal: | 0.38mm Thickness Min FFC Cables |
| High Light: | Ata Sata Adapter,Serial Ata Power Connector,50V SATA Connectors |
||
1, The specification details of this ptoduct
| Basic size information | |||
| Color | black | ||
| Pitch | 0.5mm | ||
| Row | single | ||
| Lock | with | ||
| Positions | 51Pin | ||
| Electrical properties | |||
| Current Rating | 0.5A AC, DC | ||
| Voltage Rating | 50V AC, DC | ||
| Contact Resistance | 30mΩ Max | ||
| Insulation Resistance | 100MΩ | ||
| Withstanding Voltage | 250V AC/minute | ||
| Mechanical properties | |||
| temperature range | -25℃ to 85 ℃ | ||
2, Related drawing and report
3, Application fied of this parts
This product are widely used in printer, computer, telecommunication device etc. Because of the strict inspection system, our defective rate is under a very low value, so we are confident to work together with some company with high reputation like TPV, LeTV, Emerson, Amphenol Corporation, BYD etc. And the all products are listed by REACH, UL, RoHS. We also constribute to protect the evironment, then some parts are halogen free.
4, Multiple delivery terms can be available
We have wonderful cooperation with world class delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. So please make a wisdom
decision, contact us now!!!
