| Place of Origin: | Dongguan, China(mainland) |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A2506H-NP |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Bag with outside carton or customized terms |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 28 million pcs per month |
| Category: | Crimp Housings | Application: | Wire-to-board |
|---|---|---|---|
| Lock To Mating Part: | Without | Wire Range: | AWG28# To 22# |
| Flammability: | UL94V-0 | Wire Insulation Diameter: | 1.90mm Max. |
| High Light: | Printed Circuit Board Connectors,Circuit Board Connections,Molex 5264 Wire To Board Connector |
||

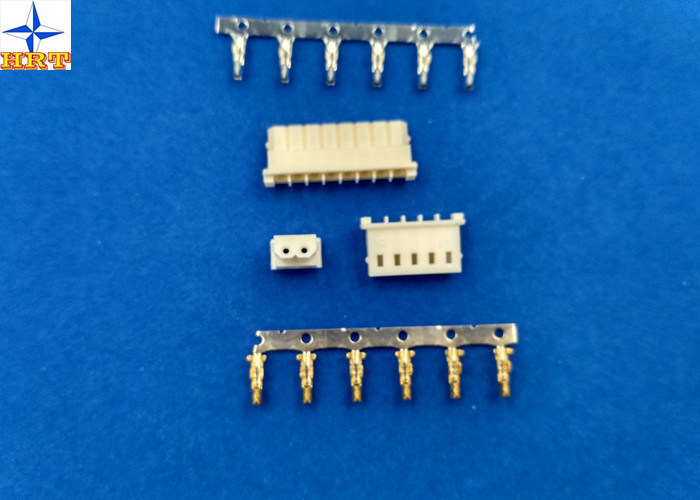

1, The specification details for product
It will be helpful to understand this product by attached table. Please pay attention to our
relevant part, they can work together for your system demans.
| Basic size information | |||
| Pitch | 2.5mm | ||
| Color | Light-yellow(beige) | ||
| Row | Single | ||
| Material | PA66 | ||
| Circuits(positions) | 2 to 16 pins | ||
| Gender | Receptacle | ||
| Terminal materials | Phosphor bronze, tin-plated | ||
| Suitable terminals | A2506T series | ||
| Suitable wafer | A2506 series | ||
| Electrical properties | |||
| Current Rating | 3A AC, DC | ||
| Voltage Rating | 250V AC, DC | ||
| Contact Resistance | 20mΩ Max | ||
| Insulation Resistance | 1000mΩ min | ||
| Withstanding Voltage | 100V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. | |||
2, Related drawing and report
Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.
3, Application field of product and main customer
This product is developed for PDP, LCD, or small electronics equipment. Because our defective rate under a very low value , so our parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.
4, Why choose us!
1). We are in Dongguan, the electronics manufacturing center of China. We can provide you the most competitive products.
2). We have worked in this field more than 12 years, and most of mould will be available by us.
3).There is a a pool of experienced, sophisticated work of the top technical talent, and use of advanced automated production equipment, full assurance of the quality of the products.
4). Our customers are located all over the world including China, Singapore, Indonesia, Korea, USA and EU as well as Africa andSouth America.
5, we can offer multiple and fast shipping terms for you!
We have very good cooperation with world famouse express company, so our shipping cost will be very favorable. Besides, we also make some agreement with them to guarantee prompt delivery and serve for your hurry demands.
