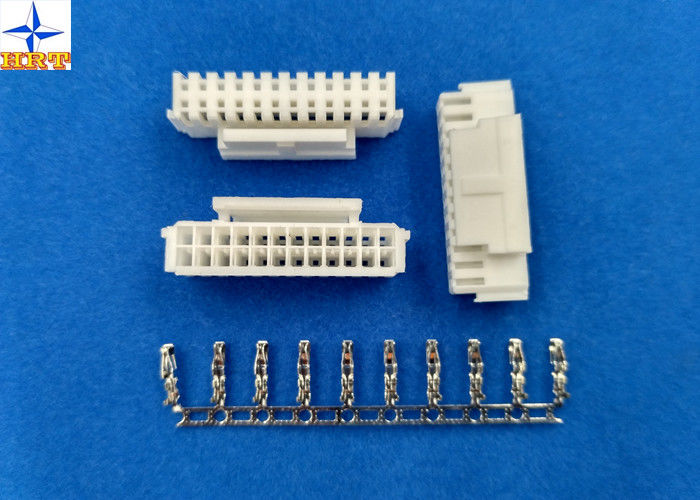

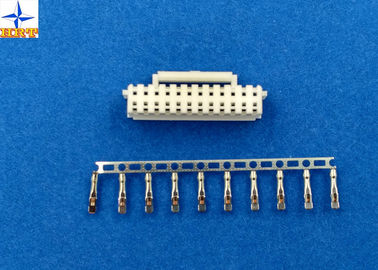

3A AC / DC PCB Wire To Board Connectors Contact, 2.00mm Pitch Connector Crimp Terminal

3A AC / DC PCB Wire To Board Connectors Contact, 2.00mm Pitch Connector Crimp Terminal

    • 3A AC / DC PCB Wire To Board Connectors Contact, 2.00mm Pitch Connector Crimp Terminal
    • 3A AC / DC PCB Wire To Board Connectors Contact, 2.00mm Pitch Connector Crimp Terminal
    • 3A AC / DC PCB Wire To Board Connectors Contact, 2.00mm Pitch Connector Crimp Terminal
  • 3A AC / DC PCB Wire To Board Connectors Contact, 2.00mm Pitch Connector Crimp Terminal

    Product Details:

    Place of Origin: China
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A2008

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 PCS
    Price: Negotiated
    Packaging Details: paper tray with out carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 1000 pcs per day
    Contact Now
    Detailed Product Description
    Items: A2008-TPE Terminal Pitch: 2.00mm
    Type: Wire Connector Terminals Material: Phosphor Bronze
    Used In: A2008 Series Housing Fire-protection Rating: UL 94V-0
    Plating: Tin -plated
    High Light:

    Crimp Wire Connectors

    ,

    Connector Crimp Terminal

    Description:

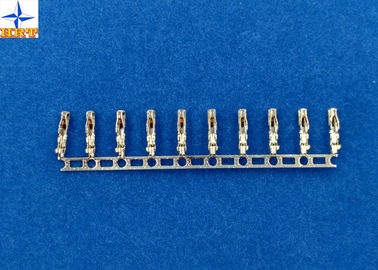

    1. Terminals are stamped by Phosphor Bronze, E-Stamping before Tin-plated Tin-plated we calling A2008TPe, Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.

    2. Terminals' wire range :AWG #28--#22nsulation OD is1.50mm(Max).



    Specifications:



    Test Description Procedure Requirement

    Contact Resistance

    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)    20mΩ (Max.)
    Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B    1000MΩ (Min.)
    Dielectric Withstanding Voltage Mate connectors, apply 1000V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)    No Breakdown.
    Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.     5mΩ (Max.)



    Current rated       3A AC/DC max

    Voltage rated       250V AC/DC
    Withstand voltage      1000V AC/minute
    Insulation resistance      1000MΩ min
    Contact resistance      20MΩ max
    Operating temperature      -25 - 85°C



    Quality:



    The world's xinpei plastic & metal electronic Co.,Ltd. to provied customers with high qulity,high reliability ,high efficiency  service responsibility ,forge ahead, the endess pursuit.

    Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
    step are doing by ourself. So we can control the quality.



    1. Manufactured under strict controls.

    2. ISO 9001:2008  ISO14001 2004

    3. UL Certification

    4. Reach Cetitifaction

    5. RoHS compliance

    6. OEM for PULSE



    Design &Technical strength

    We have many more than 12 years experience in connector industry engineer can support your new
    project.Design a new tooling time:30-45 workdays





    3A AC / DC PCB Wire To Board Connectors Contact, 2.00mm Pitch Connector Crimp Terminal

    Service:



    Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .



    HRT Offer good pre-sales & after-sales service &Strong technical support



    1. New Project: Strong technical and ideal support your new design

    2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

    3. time.

    4. Free Samples:10-20 PCS of each part number

    5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

    6. Customer complaint:24-48 hours reply 8D report

    7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,, or repair

    kits if customers are not satisfied)
