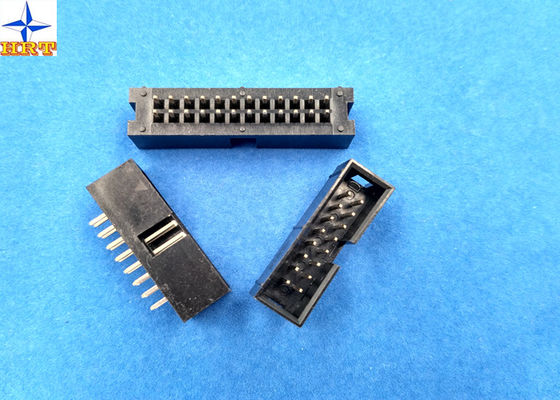

180 Degree Box Header Wire To Board Connectors 2.54mm Pitch Type Vertical Male connector

180 Degree Box Header Wire To Board Connectors 2.54mm Pitch Type Vertical Male connector

    • 180 Degree Box Header Wire To Board Connectors 2.54mm Pitch Type Vertical Male connector
    • 180 Degree Box Header Wire To Board Connectors 2.54mm Pitch Type Vertical Male connector
    • 180 Degree Box Header Wire To Board Connectors 2.54mm Pitch Type Vertical Male connector
  • 180 Degree Box Header Wire To Board Connectors 2.54mm Pitch Type Vertical Male connector

    Product Details:

    Place of Origin: Dongguan, China(mainland)
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A2548WV-2XNP

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: USD0.001 to 0.5 per pcs
    Packaging Details: Tube(pipe) with outside paper carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    Contact Now
    Detailed Product Description
    Color: Black Pitch: 2.54mm
    Wafer Materials: PBT, UL94V-0 Wire Range: AWG22# To 28#
    Packaging Type: Tube Pins Material: Brass Or Gold-plated
    High Light:

    Circuit Board Connectors

    ,

    Wire To Board Connector

    180 Degree Box Header Wafer Connector 2.54mm Pitch Type Vertical



    1, Detailed specification table of product



    Detailed information




    Basic information

    Type Wafer
    Circuits From 6 pins to 64 pins
    Insulation O.D. 1.63mm(Max)
    Mating lock None
    Mated housing A2546 dual row series
    Mounting methods Top entrance

    Electrical properties Current Rating 3A AC, DC
    Voltage Rating 250V AC, DC
    Contact Resistance 20mΩ Max
    Insulation Resistance 1000mΩ min
    Withstanding Voltage 1500V AC/minute

    Mechanical properties Temperature range -25℃ to 85 ℃
      Other information please kindly check the following picture.





    2,  Corresponding engineering drawing

    Below file is our engineering drawing and testing report for further information. It's sure that it will be a

    good reference for you to know this series parts clearly.

    180 Degree Box Header Wire To Board Connectors 2.54mm Pitch Type Vertical Male connector

    180 Degree Box Header Wire To Board Connectors 2.54mm Pitch Type Vertical Male connector

    180 Degree Box Header Wire To Board Connectors 2.54mm Pitch Type Vertical Male connector



    3, FAQ

    1) What's the delivery time?
    Usually 5-8 days after payment received, longer for large order.

    2) What’s the payment term?
    Our payment terms: T/T, PayPal, Western Union, Moneygram, L/C, etc.

    3) What's the shipping way?
    Via DHL, FedEx, EMS, UPS, by air, by sea...etc.

    4) Do you have after-sales service?
    Yes. 8 hours online service

    5) What is your guarantee for the goods?
    We will replace 1:1 for the defective goods after sales.12 months guarantee after manufacturing.
