| Place of Origin: | Dongguan, China(mainland) |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | C4255HF-NP |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Bag with outside carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 28 million pcs per month |
| Category: | Wire To Wire Connector | Suitable Terminals: | C4255F Series |
|---|---|---|---|
| Flammability: | UL94V-0/2 | Material: | Nylon66 |
| Positions: | 2, 3, 4, 5 Circuits | Locking Structure: | With |
| High Light: | Crimp Terminal Connector,Board In Connector |
||

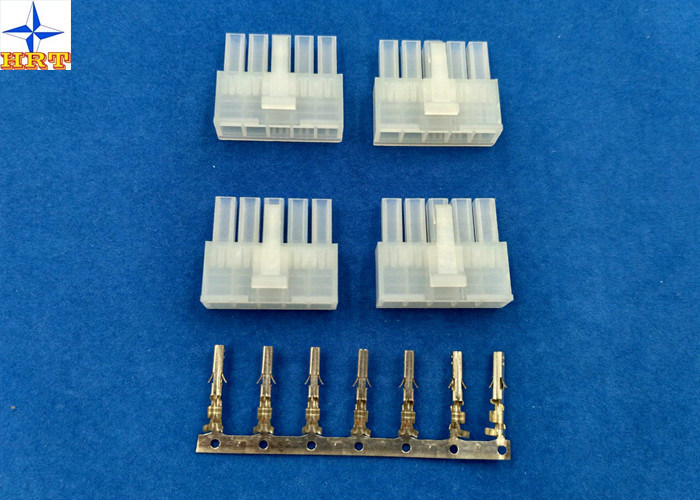

wire to wire connector type single row power cable connector 4.20mm pitch housing
1, Detailed information of product feature
| Basic dimension information | |||
| Pitch | 4.20mm | ||
| Color | White | ||
| Row | Dual/Double | ||
| Bump | Without | ||
| Application | Power, wire-to-wire | ||
| Wire range | AWG22# to 26# | ||
| Wire insulation diameter | 3.10mm Max | ||
| Terminal materials | Brass/Phosphor bronze material, tin-plated finish | ||
| Matched part | C4255HM, C4255HMA series single row housing or C4255 series single row wafer | ||
| Electrical properties | |||
| Current Rating | 9.0A AC, DC | ||
| Voltage Rating | 600V AC, DC | ||
| Contact Resistance | 10mΩ Max | ||
| Insulation Resistance | 1000MΩ min | ||
| Withstanding Voltage | 1500V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Terminal Insertion Force | 1.50kgf (Max.) | ||
| Terminal/Housing Retention Force | 3.00kgf (Min.) | ||
| Pin Retention Force | 3.00kgf (Min.) | ||
| Latch Yield Strength | 7.0kgf (Min.) | ||
| Panel Mount Retention Force | 16.0kgf (Min.) | ||
| Other information please kindly check the following picture. | |||
2, Related drawing and report
Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.
Testing report
Environmental Performance And Others
| Test Description | Procedure | Requirement | |
| 6-1 | Temperature Rise | Carrying rated current load.(Based upon UL 498) | 30℃(Max.) |
| 6-2 | Heat Resistance | 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) |
| 6-3 | Cold Resistance | -25±3℃,96 hours (Based upon JIS C0020) | |
| 6-4 | Humidity |
Temperature: 40±2℃ Relative Humidity : 90~95% Duration: 96 hours (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) Insulation Resistance 100MΩ (Min.) Dielectric Withstanding Voltage Must meet 4-3 |
| 6-5 | Temperature Cycling |
5 cycles of: a) -55℃ 30 minutes b) +85℃ 30 minutes (Based upon JIS C0025) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) |
| 6-6 | Salt Spray | Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B) | |
| 6-7 | SO2 Gas |
24 hours exposure to 50±5ppm. SO2 gas at 40±2℃. |
|
| 6-8 | NH3 Gas | 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution. | |
| 6-9 | Solderability |
Soldering Time: 5±0.5 sec. Solder Temperature: 245±5℃ |
Solder Wetting 95% of immersed area must show no voids, pin holes |
| 6-10 | Resistance to Soldering Heat |
Solder pot method Soldering time: 10±0.5 sec. Solder Temperature: 260±5℃ Solder iron method Soldering Time: 5±0.5 sec. Solder Temperature: 370℃ ~ 400℃ |
Appearance No Damage. |
