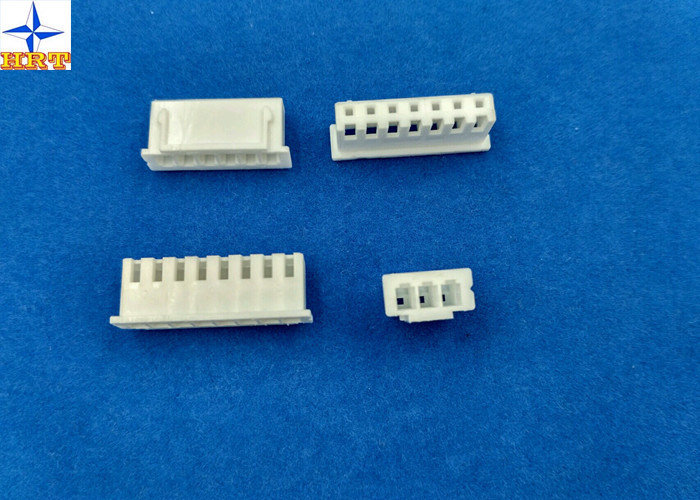

2.5mm pitch Disconnectable Crimp style connectors XH connector Shrouded header type

2.5mm pitch Disconnectable Crimp style connectors XH connector Shrouded header type

    • 2.5mm pitch Disconnectable Crimp style connectors XH connector Shrouded header type
    • 2.5mm pitch Disconnectable Crimp style connectors XH connector Shrouded header type
    • 2.5mm pitch Disconnectable Crimp style connectors XH connector Shrouded header type
  • 2.5mm pitch Disconnectable Crimp style connectors XH connector Shrouded header type

    Product Details:

    Place of Origin: China
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A2501

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 PCS
    Price: Negotiated
    Packaging Details: Carton / Paper pots
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 1000 pcs per day
    Contact Now
    Detailed Product Description
    Product Name: A2501H-NP Housing Pitch: 2.50mm
    Suitable: A2501 Series Terminal Material: PA66
    Color: White Fire-protection Rating: UL 94V-0
    Mates With: A2501 Series Wafer
    High Light:

    Pcb To Wire Connectors

    ,

    Board To Wire Connectors



    Pitch 2.50mm single row 02pin to 16pin wire to pcb connectors PA66

    Description:

    1. A2501 series  housing  A2501H-NP(suitable A2501 series  Terminal )

    2, Housing s’ materials: PA66, Fire-protection rating are both UL 94-V2. Minimum packing quantity is 500pcs/bag.

    3. Housing we have 2Pin~16pin ,The daily production capacity is 20 to 30 KPCS.

    Specifications:



    Test Description Procedure Requirement

    Contact Resistance

    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 10mΩ (Max.)
    Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
    Dielectric Withstanding Voltage Mate connectors, apply 1000V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
    Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.. 5mΩ (Max.)



    Electrical:



    Voltage rated 250V AC ,DC
    Current rated 3A  AC,DC
    Withstand voltage 1000VAC/minute
    Insulation resistance 1000MΩ Min
    Contact resistance 10mΩ Max
    Operating temperature -25°C~85°C



     Drawing:



    2.5mm pitch Disconnectable Crimp style connectors XH connector Shrouded header type



    Quality:



    The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit

    Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
    step are doing by ourself. So we can control the quality.



    1. Manufactured under strict controls.

    2. ISO 9001:2008

    3. UL Certification

    4. Reach Cetitifaction

    5. RoHS compliance

    6. OEM for PULSE

    7. Active Environmental policy

    8. Every module tested 3times (not just batch tested)



    Service:

    Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .



    HRT Offer good pre-sales & after-sales service &Strong technical support

    1. New Project: Strong technical and ideal support your new design

    2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

    3. time.

    4. Free Samples:10~20 PCS of each part number

    5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

    6. Customer complaint:24-48 hours reply 8D report

    7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement, or repair

    8. kits if customers are not satisfied)
