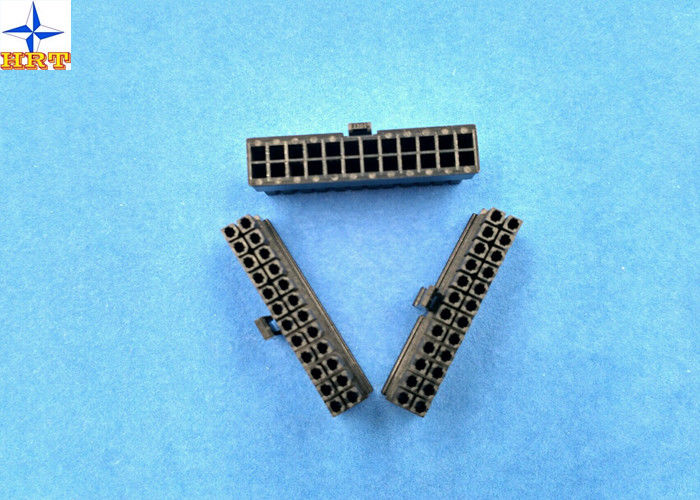

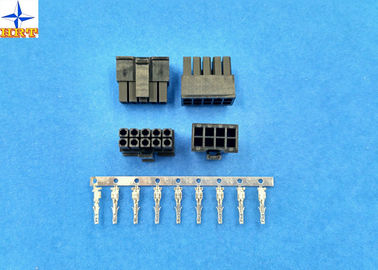

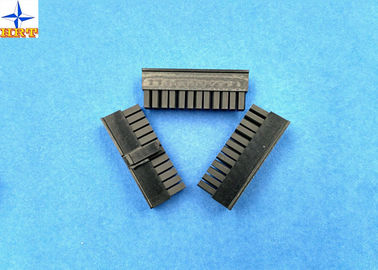

Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing

Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing

    • Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
    • Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
    • Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing
  • Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing

    Product Details:

    Place of Origin: Dongguan, China(mainland)
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: C3030HF-2XNP

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiated
    Packaging Details: Bag with outside carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 20 million pcs per month
    Contact Now
    Detailed Product Description
    Category: Power Cable Connector Suitable Terminals: C3030F Series
    Flammability: UL94V-0/2 Material: PA66
    Positions: 2 To 24 Circuits Gender: Female
    Colour: Black
    High Light:

    Wire To Wire Connector

    ,

    Power Splitter Cable

    1, Detailed information of product feature


    Basic dimension information
    Application Power, wire-to-wire
    Pitch 3.00mm
    Color black
    Row Dual/Double
    Bump Without
    Wire range AWG22# to 24#
    Wire insulation diameter 1.85mm Max
    Terminal materials Phosphor bronze material, tin-plated or gold-flash finish

    Electrical properties
    Current Rating 3.0A AC, DC
    Voltage Rating 250V AC, DC
    Contact Resistance 10mΩ Max
    Insulation Resistance 500mΩ min
    Withstanding Voltage 1500V AC/minute

    Mechanical properties
    Temperature range -25℃ to 85 ℃
    Terminal Insertion Force 1.50kgf (Max.)
    Terminal/Housing Retention Force 2.50kgf (Min.)
    Pin Retention Force 1.50kgf (Min.)
    Latch Yield Strength 7.0kgf (Min.)

    Other information please kindly check the following picture.


    2, Related drawing and report
    Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.
    Wire To Wire Connector 3.00mm Pitch Power Connector Low-Halogen Receptacle Housing

    4, FAQ
    Q: Can we have our own brand packaging? How?
    A: Yes,we have designer in house to meet customized packaging requirment, all you have to do is let us know your idea or demands.
    Q: Does your products print exactly the same as original?
    A: Compatible products were known for its favourable prices and accurate size as originals.
    Q: What is your MOQ for sample order?
    A: All size sample orders are welcome.we do understand your idea to increase order gradually.
    Q: What about guarantee?
    A: One on one exchange for defectives exceed our guarantee rate.
