| Place of Origin: | Dongguan, China(mainland) |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A2542HB-NP |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | bag with outside paper carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 600K pcs per month |

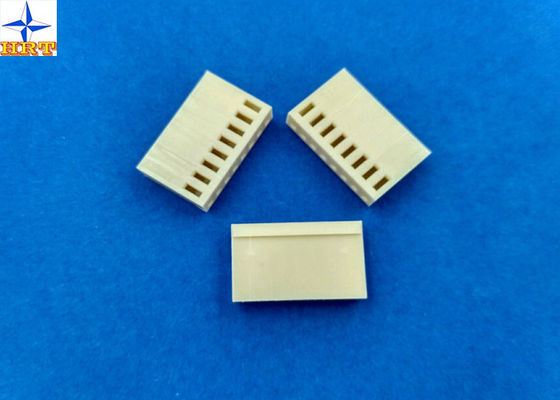

| Color: | Cream | Pitch: | 2.54mm |
|---|---|---|---|
| Material: | PA66 | Flammability: | UL94V-2 |
| Mating Lock: | With | Row: | Single |
| High Light: | Printed Circuit Board Connectors,Pcb Connectors Wire To Board,ISO9001 Circuit Board Wire Connectors |
||
1, Detailed Datasheet of product
| Basic information | |||
| Suitable terminals | A2542T series | ||
| Suitable wafer | A2542W series | ||
| Mount type | Not on board | ||
| Wire range | AWG22# to 28# | ||
| Circuits | 2pins to 20pins | ||
| Wire Insulation Diameter | 1.57mm Max. | ||
| Application | Signal, wire to board | ||
| Terminal type | A2542TBE A2542TPE A2542GPE | ||
| Terminal package size | 10K pcs per reel | ||
| Electrical properties | |||
| Current Rating | 4A AC, DC | ||
| Voltage Rating | 250V AC, DC | ||
| Contact Resistance | 10mΩ Max | ||
| Insulation Resistance | 1000mΩ min | ||
| Withstanding Voltage | 1000V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Terminal Insertion Force | 1.00kgf (Max.) | ||
| Terminal/Housing Retention Force | 2.00kgf (Min.) | ||
| Pin Retention Force | 1.50kgf (Min.) | ||
| Other information please kindly check the following picture. | |||
2, Related drawing and report
The following data is for your refernce, it will be a good tools for you to understand our products.
Mechanical Performance
| Test Description | Procedure | Requirement | ||
| 5-1 | Actuator Insertion & Withdrawal Force | Insert and withdraw connectors at the speed rate of 25±3mm / minute. | Refer to paragraph 7-2 | |
| 5-2 | Crimping Pull Out Force | Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) | AWG#24 | 3.0kgf (Min) |
| AWG#26 | 2.0kgf (Min) | |||
| AWG#28 | 1.0kgf (Min) | |||
| AWG#30 | 0.8kgf (Min) | |||
| 5-3 | Terminal Insertion Force. | Insert the crimped terminal into the housing. | 1.00kgf (Max.) | |
| 5-4 | Terminal/Housing Retention Force. | Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. | 2.00kgf (Min.) | |
| 5-5 | Pin Retention Force | Apply axial push force at the speed rate of 25±3mm / minute | 1.50kgf (Min.) | |
| 5-6 | Durability | When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. | Contact Resistance 20mΩ (Max.) | |
| 5-7 | Vibration |
Amplitude: 1.5mm P-P Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes. (Based upon MIL-STD-202 Method 201A) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) Discontinuity 1 μsec.(Max.) |
|
| 5-8 | Physical Shock | 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A) | ||
3, Applicated field of this product
This product are widely used in household appliance, computer, telecommunications device. Our parts
have very good performance in signal and current transmission. So it's accepted by some famouse company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth,BYD, LuXshare and more. You
can know this easily from attached pictures.
4, Why choose us
Our Quality: Quality is the life of HRT. We use only the best quality (original) materials to ensure the standard of our product. All products we sold out are strictly selected and tested by our QC department.
Warranty:We provide comprehensive after-sales service, including quality service, guidance services. We focus on customer needs in every detail. Please contact us if you have any question.
Payment:We accept payment via TT (Bank transfer), PayPal, Western Union, L/C. We accept bank transfer for large orders. For small order, it's better for you to pay via T/T or Western union.
Shipping:We offer as many shipping options as possible, including DHL, UPS, FedEx, TNT and EMS.
5, Payment and delivery choice
We can offer multiple and flexible payment and delivery terms to save your money & shipping time. I hope
we have long-term & firm business relationship and personal friendship
