| Place of Origin: | Dongguan, China(mainland) |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A3961HA-NP |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| Price: | USD0.005 to 0.008 per pcs |
| Packaging Details: | Bag with outside paper carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 28 million pcs per month |
| Circuits: | 2 Pins To 15 Pins | Mating Lock: | With |
|---|---|---|---|
| Terminal Material: | Brass Or Phosphor Bronze | Wire Insulation Diameter: | AWG18# To 22# |
| Finish Terminal: | Tin-plated | Suitable Terminals: | 3.00mm Max |
| High Light: | PCB Battery Connector,6 Pin Connector |
||

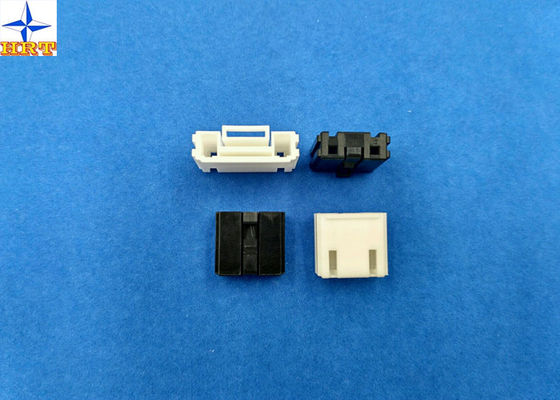

3.96mm pitch wire to board also battery terminal connectors A type precise alternatives A3691HA-NP
1, The product specification
Through the next datasheet, you will have a good understanding for our product. Besides, the interrelated
product of this part like terminals, wafer(right angle or vertical) can be offered by us too.
| Basic size information | |||
| Color | White | ||
| Material | Nylon66 | ||
| Row | Single | ||
| Pitch | 3.96mm | ||
| Flammability | UL94V-0 | ||
| Wire range | A3961T series | ||
| Terminal processing method | E-stamping before tin-plated | ||
| Part No. | A3961HA-NP | ||
| Electrical properties | |||
| Current Rating | 7A AC, DC | ||
| Voltage Rating | 250V AC, DC | ||
| Contact Resistance | 10mΩ Max | ||
| Insulation Resistance | 1000mΩ min | ||
| Withstanding Voltage | 1500V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. | |||
2, Related drawing and report
You can get more characteristics from below picture, through this, you can know our product very clearly.
3, Application fied of these product
This product is developed for battery terminal connector. It can have a good perfomance, to guarantee the eletrical or signal passing well. It also is with strong structure against external force. Because our part
is with a low defective rate, so our parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.
