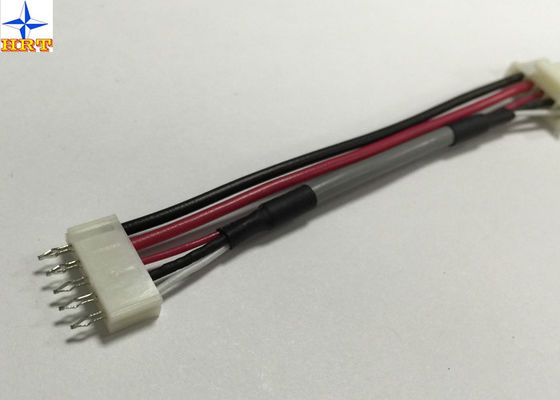

AWG 20# & 16# Wire Harness Assembly with SAN Connectors Red / Black / Yellow

AWG 20# & 16# Wire Harness Assembly with SAN Connectors Red / Black / Yellow

    • AWG 20# & 16# Wire Harness Assembly with SAN Connectors Red / Black / Yellow
    • AWG 20# & 16# Wire Harness Assembly with SAN Connectors Red / Black / Yellow
    • AWG 20# & 16# Wire Harness Assembly with SAN Connectors Red / Black / Yellow
    • AWG 20# & 16# Wire Harness Assembly with SAN Connectors Red / Black / Yellow
  • AWG 20# & 16# Wire Harness Assembly with SAN Connectors Red / Black / Yellow

    Product Details:

    Place of Origin: China
    Brand Name: HRT
    Certification: ISO9001/14001, ROHS , Reach, UL
    Model Number: W201106P300

    Payment & Shipping Terms:

    Minimum Order Quantity: 5,000 PCS
    Price: Negotiated
    Packaging Details: Carton / Paper pots
    Delivery Time: 5-8 working day
    Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 10000 pcs per day
    Contact Now
    Detailed Product Description
    Catagory: Wire Harnesses Pitch: 3.96mm & 2.0mm
    Wire Guage: AWG20# & 16# Contact: Phosphor Bronze With Tin-plated
    Connector: SAN Connector Equivalent Wire Color: Red/Black/Yellow Etc
    Length: 400mm Application: Automobile, Car Etc
    High Light:

    electronic wiring harness

    ,

    auto wiring harness

    wire harnesses with SAN connectors board-in connector wire to board wire harnesses

    Product Description



    Item name Automobile application custom wire harness&cable assembly
    Application Electronic, Car & Motor, Vehicles, Home application etc
    Samples Free samples available
    Costom & OEM Drawings/pictures/samples are required
    Inspection All goods are 100% inspected before delivery
    Service wire & cable making, engineering design support, splicing, wire & cable strip & crimp
    Shipping & delivery By International Express: FEDEX/DHL/UPS/TNT;By air; By sea
    Lead time 3~10 working days after payment
    Certification

    ISO 9001:2008 & RoHS, UL, Reach





    5. Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force to P.C.B

    Insert and withdraw at the speed rate of 25±3mm / minute to P.C.Board.

    (Per single circuit,Initial)

    Insertion 1.0kgf max.
    Withdrawal 0.1kgf min
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#24 3.0kgf (Min)
    AWG#26 2.0kgf (Min)
    AWG#28 1.0kgf (Min)
    AWG#30 0.8kgf (Min)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 0.50kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 1.00kgf (Min.)
    5-5 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 10mΩ (Max.)
    5-6 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 10mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-7 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)





    6. Environmental Performance And Others



    Test Description Procedure Requirement
    6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
    6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

    Appearance No Damage.

    Contact Resistance 10mΩ (Max.)

    6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
    6-4 Humidity

    Temperature: 40±2℃

    Relative Humidity : 90~95%

    Duration: 96 hours

    (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

    Appearance No Damage.

    Contact Resistance 10mΩ (Max.)

    Insulation Resistance 100MΩ (Min.)

    Dielectric Withstanding Voltage Must meet 4-3

    6-5 Temperature Cycling

    5 cycles of:

    a) -55℃ 30 minutes

    b) +85℃ 30 minutes

    (Based upon JIS C0025)

    Appearance No Damage.

    Contact Resistance 10mΩ (Max.)

    6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
    6-7 SO2 Gas

    24 hours exposure to 50±5ppm.

    SO2 gas at 40±2℃.

    6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.



    6-9 Solderability

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 245±5℃

    Solder Wetting 95% of immersed area must show no voids, pin holes
    6-10 Resistance to Soldering Heat

    When reflowing

    Refer to paragraph 8

    Solder iron method

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 370℃ ~ 400℃

    Appearance No Damage.





      FAQ
    Q:Do you allow multiple design per setup?
    A:Yes.We accept OEM service and allow multiple design per setup.

    Q:How long does shipping take?
    A:It depends on the destination location and quantity. In most developed world, delivery by Fed x/UPS/DHL is normally 3-5 days(excluding weekends).

    Q: How is the goods packaged ?
    A: Usually in bags, tube, pipe, plated & carton



    We can produce series of wire harnesses:

    1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
    2.Electrical cable and wire harness
    3.Audio,Video,Radio cable and iso wire harness
    4.Industrial wire cable harness
    5.Home appliance wire harness
    6.Fuse wire ,game machine wire harness
    7.Power,LVDs,Flat RCA,USB cable harness
    8.Control and panel wiring cable assemblies
    9.Medical equipment cable and harness
    10.Airplane models wire harness



    AWG 20# & 16# Wire Harness Assembly with SAN Connectors Red / Black / Yellow
