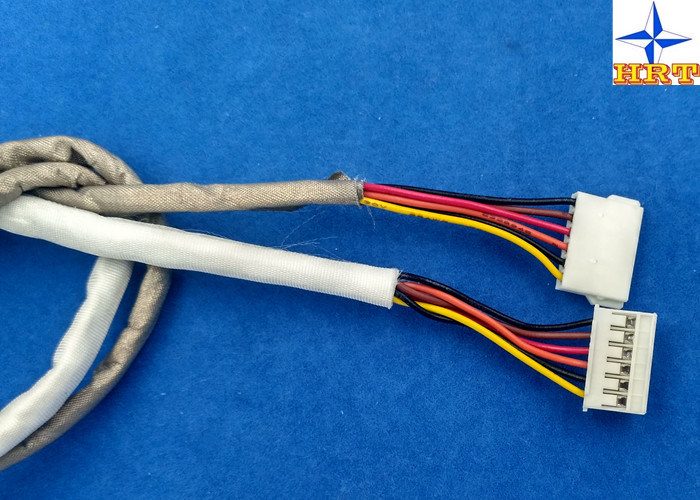

Wire To Board Wire Assembly With 2.0mm pitch YH SMH200 connectors tinned contact

Wire To Board Wire Assembly With 2.0mm pitch YH SMH200 connectors tinned contact

    • Wire To Board Wire Assembly With 2.0mm pitch YH SMH200 connectors tinned contact
    • Wire To Board Wire Assembly With 2.0mm pitch YH SMH200 connectors tinned contact
    • Wire To Board Wire Assembly With 2.0mm pitch YH SMH200 connectors tinned contact
    • Wire To Board Wire Assembly With 2.0mm pitch YH SMH200 connectors tinned contact
  • Wire To Board Wire Assembly With 2.0mm pitch YH SMH200 connectors tinned contact

    Product Details:

    Place of Origin: China
    Brand Name: HRT
    Certification: ROHS , Reach, UL
    Model Number: WA2006P525-00

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiated
    Packaging Details: Carton / Paper pots
    Delivery Time: 5-8 working day
    Payment Terms: PayPal, T/T, Western Union
    Supply Ability: 5000 pcs per day
    Contact Now
    Detailed Product Description
    Product Name: SMH200 Connector Wire Harnesses Pitch: 2.00mm
    Connector Color: White Terminals: Phosphor Bronzne With Tin-plated
    Length: 325mm Wire Color: White, Red, Black
    Wire Size: AWG26# Conductor: Pure Copper
    High Light:

    electronic wiring harness

    ,

    auto wiring harness

    wire harness wire to board wire assembly with 2.0mm pitch YH SMH200 connectors

    Product Description


    Product name:
    PCB board wire harness,Board to board wire harness,wire to board cable
    Secification:
    According to the customer picture ,item NO. or picture
    Certification:
    UL, SGS, ROHS, REACH
    Delivery:
    The stock goods delievery within 1 day, customized goods delivery within 5-7days
    Sample:
    Free
    MOQ:
    Most product not have MOQ ,orders for just one piece are welcome
    Terms of trade:
    EXW,FOB,CIF ect
    Package:
    Connector 1000/2000 Per Bag with Label,
    Terminal in roll, put into 50*50*40cmexport standard Carton with packing list and shipping mark
    Payment Terms:
    T/T in advance ,Western Union ,Paypal , L/C
    Application:
    Widely used in telecommunication equipment ,computer ,controllers ,alarm security ,appliance instruments and fields
    Service:
    ODM/OEM (Design, Engineering, Photographing, Sample, Production)


    Ratings & Applicable Wires


    ItemStandard
    Rated Voltage (Max.)100V AC/DCInsulation O.D. 1.50mm (Max.)
    Rated Current (Max.) And Applicable WiresAWG#242.0A AC/DC
    AWG#261.5A AC/DC
    AWG#281.0A AC/DC
    AWG#300.5A AC/DC
    Ambient Temperature Range-25℃ ~ +85℃*

    *: Including terminal temperature rise


     Electrical Performance


    Test DescriptionProcedureRequirement
    4-1


    Contact Resistance


    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)10mΩ (Max.)
    4-2Insulation ResistanceMate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)1000MΩ (Min.)
    4-3Dielectric Withstanding VoltageMate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301)No Breakdown.
    4-4Contact Resistance on Crimped PortionCrimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.5mΩ (Max.)




    FAQ

    1. Q: I can't find the product on your catalogue, can you make this product for me?
    A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want.
    If we do not have it,we can also design and make a new mould to produce it.For your reference, making a ordinary mould will take about 35-45 days.
    2. Q: Can you provide samples ? Are the samples free ?
    A: Yes , we provide 5-10 pcs connector free samples for test.But you have to pay for the shipping cost
    3. Q : What about your delivery time?
    A: The stock goods delivery within 1 day, customized goods delivery within 5-7days
    4. Q : How to ship my order ?
    A: For small package, send it by Express, such as DHL,FedEx,UPS,TNT,EMS. That's a Door to Door service .
    For big packages, can send them by Air or By sea. We use standard export carton.We will be responsible to any product damage caused on delivery.
    5. Q: What kind of payment do you accept ?
    A: We accept T/T(Wire transfer), Western Union and Paypal.
    6.Q:Howabout your company quality control
    A:Strictly obey ISO9001,IQC,OQC,IPQC,QA occupy 10% of our Quality department, CCD test is gradually being used in our company

    Our Services


    Services: We also customize special products to meet our clients' requirements. Just show us your drawing, sample or indicated details, we will produce it Or please kindly send us your specific engineering parameters such as IMD, VSWR, plating etc. We will discuss with you about the details and please feel free to contact us.

    Quality: We use only the best quality components to ensure the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.

    Guaranty: We provide comprehensive service, including quality service, guidance services, We focus on customer needs in every detail.



    Payment & Shipping


    We offer different payment & shipment way for you, then we can get more profit.
    Wire To Board Wire Assembly With 2.0mm pitch YH SMH200 connectors tinned contact
