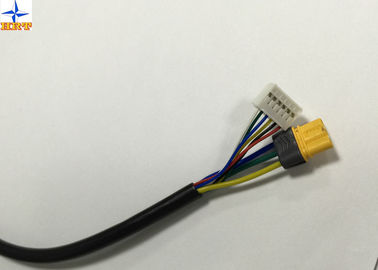

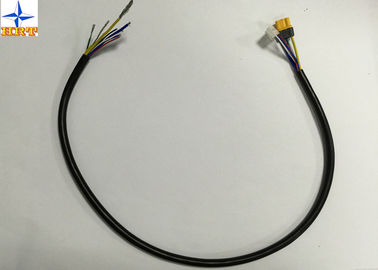

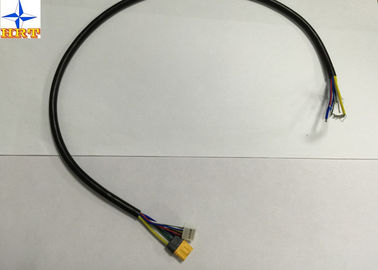

TE Connector Replacement Wire Harness Assembly For Car Wires Audio System

TE Connector Replacement Wire Harness Assembly For Car Wires Audio System

    • TE Connector Replacement Wire Harness Assembly For Car Wires Audio System
    • TE Connector Replacement Wire Harness Assembly For Car Wires Audio System
    • TE Connector Replacement Wire Harness Assembly For Car Wires Audio System
  • TE Connector Replacement Wire Harness Assembly For Car Wires Audio System

    Product Details:

    Place of Origin: China
    Brand Name: HRT
    Certification: ROHS , Reach, UL
    Model Number: WC72004P250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: Negotiated
    Packaging Details: Carton / Paper pots
    Delivery Time: 5-8 working day
    Payment Terms: D/A, L/C, D/A, D/P, T/T, Western Union
    Supply Ability: 5000 pcs per day
    Contact Now
    Detailed Product Description
    Color: White, Black, Red, Blue, Orange Etc Pitch: 3.0mm
    Current Rating: 5A Terminals: Phospher Bronze With Tin-plated
    Length: 250mm Conductor: Tinned Copper
    Wire Size: AWG22# Application: Automotive, Sustainable Energy, Medical Device
    High Light:

    car wire harness assembly

    ,

    electronic wiring harness

    Wire Harnesses With TE connector replacement Wire Assembly for car wires audio system

    Product Description



    • Cable type: UL1015,UL1007,UL1061,UL20276,UL2464,shield or unshield type
    • Cable color: Optional
    • Connectors: JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH connectors or equivalent
    • Cable Length: 50mm-15000mm.
    • Processing ways: Crimping, pressing and soldering types.
    • Pin out connection: As per customer’s request
    • Connector pitch range: 0.5mm-7.5mm
    • characteristics: Good transferring, clearly pictures, no shaking, and transfer issues
    • Advantages: Manufacturing factory;Competitive price and quality;Short lead time
    • Applications: LCD/Display/Advertising machine/Phone/Laptop/Computer etc
    • Service: OEM/ODM products are acceptable.
    • Performance Test: 100% electrical and electricity performance test
    TE Connector Replacement Wire Harness Assembly For Car Wires Audio System

    Product range of wire:

    1.Automotive,Motocycle,Bus,Bike,Truck wire cable assembly
    2.Electrical cable and wire harness
    3.Audio,Video,Radio cable and iso wire harness
    4.Industrial wire cable harness
    5.Home appliance wire harness
    6.Fuse wire ,game machine wire harness
    7.Power,LVDs,Flat RCA,USB cable harness
    8.Control and panel wiring cable assemblies
    9.Medical equipment cable and harness
    10.Airplane models wire harness


    FAQ

    Q1. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

    Q2. What is your terms of payment?
    A: T/T before delivery. We'll show you the photos of the products and packages
    before you pay the balance.

    Q3. What is your terms of delivery?
    A: EXW, FOB, CFR, CIF, DDU.

    Q4. How about your delivery time?
    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
    the courier cost.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery




    4. Electrical Performance



    Test Description Procedure Requirement
    4-1



    Contact Resistance



    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 2.50mΩ (Max.)
    4-2 Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
    4-3 Dielectric Withstanding Voltage Mate connectors, apply 2900V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
    4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.), 10mA. 5mΩ (Max.)





    5. Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#14 11.0kgf (Min)
    AWG#16 10.0kgf (Min)
    AWG#18 9.0kgf (Min)
    AWG#20 6.0kgf (Min)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 2.30kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 3.00kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 1.80kgf (Min.)
    5-6 Latch Yield Strength

    Mate connectors and pull apart until both latches break at the speed rate of

    25±3mm / minute

    16.0kgf (Min.)
    5-7 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 5mΩ (Max.)
    5-8 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 5mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-9 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)
