Pitch 7.92mm PCB Wire To Board Connectors Single Row 2 Pin Housing Lock For TV Set

Home Products Circuit Board Wire Connectors

Pitch 7.92mm PCB Wire To Board Connectors Single Row 2 Pin Housing Lock For TV Set

Product Details:

Place of Origin:	China
Brand Name:	HRT
Certification:	ISO9001/ ISO14001/UL/RoHS/REACH
Model Number:	A3961H-02P-2

Payment & Shipping Terms:

Minimum Order Quantity:	5000PCS
Price:	Negotiation
Packaging Details:	PE bag packing ,500pcs per bag,+outer carton
Delivery Time:	5 to 8 working days after payment checked
Payment Terms:	TT, Western Union, PayPal, L/C
Supply Ability:	30000pcs per day

Contact Now

Detailed Product Description

Pitch:	7.92mm	Material:	Nylon 66,UL 94-V0
Color:	Black / White/yellow	Suitable Terminal:	A3961 Series Terminal
Pin No.:	Single Row 2Pin	Hook Type:	Inside The Button
High Light:	Circuit Board Connections , Pcb Connectors Wire To Board , Pitch 7.92mm Wire To Board Connectors

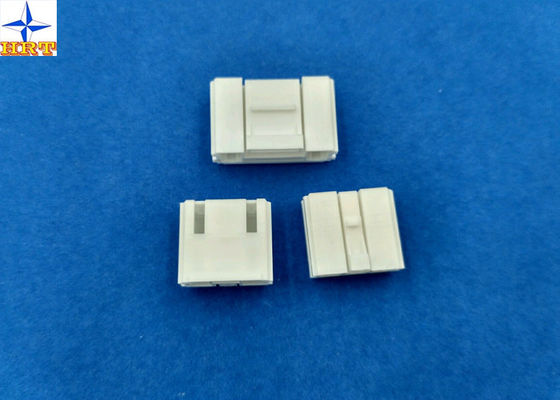

Pitch 7.92mm Pcb Connectors Wire To Board Single Row 2 Pin Housing Lock For TV Set

1. Product Informations:
Housing Material: Nylon 66, UL 94-V0,
Housing color: White/Black/yellow
Housing Pin NO.: 2Pin,single row ; P/N:A3961H-02P-2
Terminal Material: Brass,(P/N:A3961-TBE);Phosphor Bronze(P/N:A3961-TPE),
Terminal E-stamping before Tin-plated.
Terminal Wire Range: AWG#18--#22, Insulation O.D.: 3.0mm(max). Qty/Reel:4000pcs.

2. Specifications:
Current Rating: 7A AC,DC
Voltage Rating: 250V AC, DC
Tenperature Range: -25ºC--+85ºC
Contact Resistance:5MΩ Max
Insulation Resistance: 1000MΩ Min
Withstanding Voltage: 1500V AC/minute

3. Mechanical Performance

Test Description		Procedure	Requirement
5-1	Actuator Insertion & Withdrawal Force	Insert and withdraw actuator at the speed rate of 25±3mm / minute.	Refer to paragraph 7
5-2	Crimping Pull Out Force	Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8)	AWG#16	10.2 kgf (Min.)
			AWG#18	8.16 kgf (Min.)
			AWG#20	6.12 kgf (Min.)
			AWG#22	4.08 kgf (Min.)
5-3	Terminal Insertion Force.	Insert the crimped terminal into the housing.	1.50 kgf (Max.)
5-4	Terminal/Housing Retention Force.	Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing.	3.00 kgf (Min.)
5-5	Pin Retention Force	Apply axial pull out force at the speed rate of 25±3mm / minute.	3.00 kgf (Min.)
5-6	Durability	When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute.	Contact Resistance 20mΩ (Max.)
5-7	Vibration	Amplitude: 1.5mm P-P Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes. (Based upon MIL-STD-202 Method 201A)	Appearance No Damage. Contact Resistance 20mΩ (Max.) Discontinuity 1 μsec.(Max.)
5-8	Physical Shock	490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)

4. Environmental Performance And Others

Test Description		Procedure	Requirement
6-1	Temperature Rise	Carrying rated current load.(Based upon UL 498)	30℃(Max.)
6-2	Heat Resistance	85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)	Appearance No Damage. Contact Resistance 20mΩ (Max.)
6-3	Cold Resistance	-25±3℃,96 hours (Based upon JIS C0020)	Appearance No Damage. Contact Resistance 20mΩ (Max.)
6-4	Humidity	Temperature: 40±2℃ Relative Humidity : 90~95% Duration: 96 hours (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)	Appearance No Damage. Contact Resistance 20mΩ (Max.) Insulation Resistance 500MΩ (Min.) Dielectric Withstanding Voltage Must meet 4-3
6-5	Temperature Cycling	5 cycles of: a) -55℃ 30 minutes b) +85℃ 30 minutes (Based upon JIS C0025)	Appearance No Damage. Contact Resistance 20mΩ (Max.)
6-6	Salt Spray	Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B)
6-7	SO2 Gas	24 hours exposure to 50±5ppm. SO2 gas at 40±2℃.
6-8	NH3 Gas	40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution

6-9	Solder-ability	Soldering Time: 5±0.5 sec. Solder Temperature: 245±5℃	Solder Wetting 95% of immersed area must show no voids, pin holes
6-10	Resistance to Soldering Heat	Solder pot method Soldering time: 10±0.5 sec. Solder Temperature: 260±5℃ Solder iron method Soldering Time: 5±0.5 sec. Solder Temperature: 370℃ ~ 400℃	Appearance No Damage.
