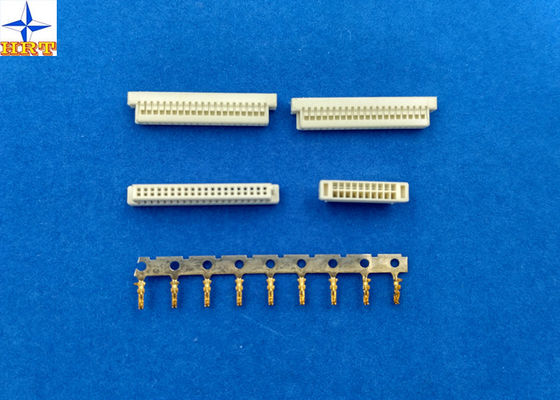

1.0mm pitch dual row wire housing wire to board connector for ACES 88252 equivalent

1.0mm pitch dual row wire housing wire to board connector for ACES 88252 equivalent

    • 1.0mm pitch dual row wire housing wire to board connector for ACES 88252 equivalent
    • 1.0mm pitch dual row wire housing wire to board connector for ACES 88252 equivalent
    • 1.0mm pitch dual row wire housing wire to board connector for ACES 88252 equivalent
  • 1.0mm pitch dual row wire housing wire to board connector for ACES 88252 equivalent

    Product Details:

    Place of Origin: Dongguan, China(mainland)
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A1004H-2XNP

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: USD0.001 to 1.0 per pcs
    Packaging Details: bag with outside paper carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    Contact Now
    Detailed Product Description
    Color: White Pitch: 1.00mm
    Material: Nylon46 UL94V-0 Wire Range: AWG28# To 32#
    Gender: Female
    High Light:

    Connector Wire To Board

    ,

    Board To Wire Connectors

    1, The specification of the product including basic size information, electrical and mechanical properties.



      Basic size information
    Circuits 20pins/30pins/40pins
    Pitch 1.0mm
    Material Nylon46 UL94V-o
    Suitable terminals A1004 series terminal
    Wire Insulation Diameter  0.80mm max.

                                                              Electrical properties
    Current Rating: 1A AC, DC
    Voltage Rating 50V AC, DC
    Contact Resistance: 20mΩ Max
    Insulation Resistance: 100mΩ min
    Withstanding Voltage: 500V AC/minute

                                                              Mechanical properties
    Temperature range -25℃ to 85 ℃
                               Other information please kindly check the following picture.





    2, Related drawing and report

    The below drawing can be a good reference for you, please kindly check the testing data to choose our product right.

    5. Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#28 1.6kgf (Min)
    AWG#30 0.8kgf (Min)
    AWG#32 0.5kgf (Min)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 0.50kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 0.50kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 0.50kgf (Min.)
    5-6 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 40mΩ (Max.)
    5-7 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-8 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)





    6. Environmental Performance And Others



    Test Description Procedure Requirement
    6-1 Temperature Rise Carrying rated current load.(Based upon UL 498) 30℃(Max.)
    6-2 Heat Resistance 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    6-3 Cold Resistance -25±3℃,96 hours (Based upon JIS C0020)
    6-4 Humidity

    Temperature: 40±2℃

    Relative Humidity : 90~95%

    Duration: 96 hours

    (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    Insulation Resistance 10MΩ (Min.)

    Dielectric Withstanding Voltage Must meet 4-3

    6-5 Temperature Cycling

    5 cycles of:

    a) -55℃ 30 minutes

    b) +85℃ 30 minutes

    (Based upon JIS C0025)

    Appearance No Damage.

    Contact Resistance 40mΩ (Max.)

    6-6 Salt Spray Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101C Cond. B)
    6-7 SO2 Gas

    24 hours exposure to 50±5ppm.

    SO2 gas at 40±2℃.

    6-8 NH3 Gas 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution.
    6-9 Solderability

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 245±5℃

    Solder Wetting 95% of immersed area must show no voids, pin holes
    6-10 Resistance to Soldering Heat

    When reflowing

    Refer to paragraph 8

    Solder iron method

    Soldering Time: 5±0.5 sec.

    Solder Temperature: 370℃ ~ 400℃

    Appearance No Damage.



    7. Actuator Insertion/Withdrawal Force

    [Unit : kgf]

    Circuits At Initial
    Insertion (Max.) Withdrawal (Min.)
    Single 0.20 0.04
    2X10 2.50 0.50
    2X15 3.75 0.75
    2X20 5.00 1.00












    3, Application fied of these product

    This product are widely used in household appliance, computer, communication device. Because our product have very high quality, it is accepted by famouse manufacturer like Huawei, Skyworth, BYD etc. And the all are certificated by REACH, UL, RoHs. In order to protect the evironment, some parts are halogen free.



    4, we can offer multiple, safe and fast shippment for you!

    We have very good cooperation with world famouse delivery company, and the can offer us good service and favorable price. It's sure that every business between us will be fast and happy. Choose us! Let's connect the realistic and electronic world.
