Brass Terminals 3.96mm Pitch Crimp Connector Pcb Connectors Wire To Board Connector

Brass Terminals 3.96mm Pitch Crimp Connector Pcb Connectors Wire To Board Connector

    • Brass Terminals 3.96mm Pitch Crimp Connector Pcb Connectors Wire To Board Connector
    • Brass Terminals 3.96mm Pitch Crimp Connector Pcb Connectors Wire To Board Connector
    • Brass Terminals 3.96mm Pitch Crimp Connector Pcb Connectors Wire To Board Connector
  • Brass Terminals 3.96mm Pitch Crimp Connector Pcb Connectors Wire To Board Connector

    Product Details:

    Place of Origin: China
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A3960

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 PCS
    Price: Negotiated
    Packaging Details: Carton / Paper pots
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 1000 pcs per day
    Contact Now
    Detailed Product Description
    Product Name: A3960 Housing Terminal Pitch: 3.96mm
    The Number Of Pin: 02PIN ~20PIN Material: HSG: PA66 TER: Phosphor Bronze, Tin-plated /Gold-flash
    Row: Single Fire-protection Rating: UL 94V-0 /UL94-V2
    High Light:

    Connector Wire To Board

    ,

    Pcb To Wire Connectors



    Pitch3.96mm PA66 housing brass Tin-plated or Gold- flash terminal wire to board connectors





    Description:

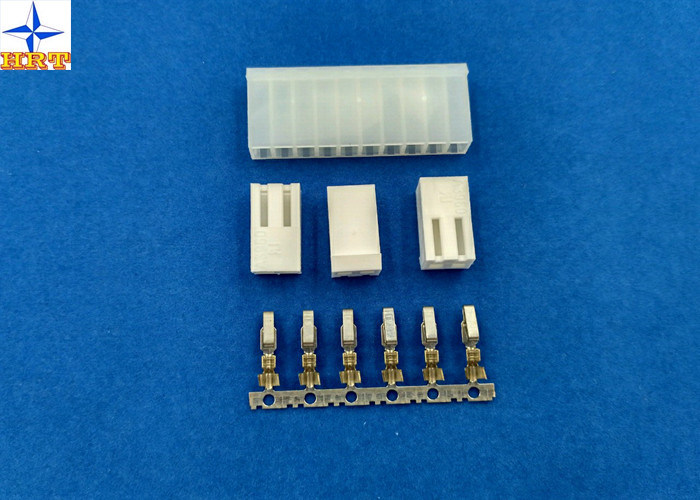

    1.A3960 series housing  have A3960H-NP (suitable A3960 series terminal)

    2,Housing  used materials: PA66, Halogen Free , Fire-protection rating is UL 94-V0   94-V2 . Minimum packing quantity is 1000pcs/bag.

    3.Single row housing we have 2P~20P,The daily production capacity is 30 to 50 KPCS.

    4.Terminals are stamped by Brass, E-Stamping before Tin-plated or Gold-flash ,Tin-plated we calling A3960-TPe , Gold-plated we calling A3960-GPe , Minimum packing quantity is 20,000pcs/Reel. The daily production capacity is 300 to 400 KPCS.

    5.Terminals' wire range :AWG #18-#24,insulation OD is 2.80mm(Max).





    Test Description Procedure Requirement

    Contact Resistance

    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)    20mΩ (Max.)
    Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)    1000MΩ (Min.)
    Dielectric Withstanding Voltage Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301))    No Breakdown.
    Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.     5mΩ (Max.)



    Electrical:



    Current rated
        7A AC/DC maximum
    Voltage rated       250V AC/DC
    Withstand voltage      1500V AC/minute
    Insulation resistance      1000MΩ min
    Contact resistance      10MΩ max
    Operating temperature      -25 - 85°C





    Drawing



    Brass Terminals 3.96mm Pitch Crimp Connector Pcb Connectors Wire To Board Connector





    Brass Terminals 3.96mm Pitch Crimp Connector Pcb Connectors Wire To Board Connector

    Service:

    Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .



    HRT Offer good pre-sales & after-sales service &Strong technical support

    1. New Project: Strong technical and ideal support your new design

    2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

    3. time.

    4. Free Samples:10~20 PCS of each part number

    5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

    6. Customer complaint:24-48 hours reply 8D report

    7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement, or repair

    8. kits if customers are not satisfied)
