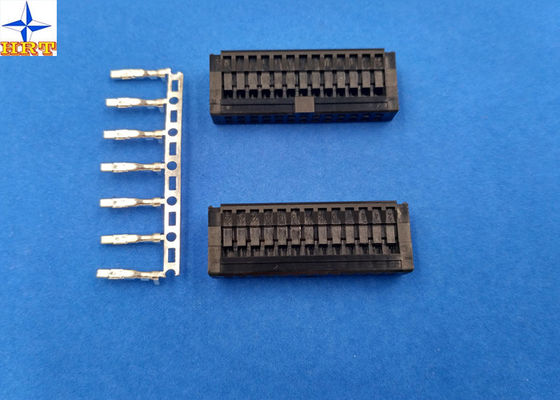

2.54mm pitch RA connector Equivalent I/O connectors Wire to Board Crimp style Connectors

Product Details:

Place of Origin:	Dongguan, China(mainland)
Brand Name:	HRT
Certification:	ISO9001/ ISO14001/UL/RoHS/REACH
Model Number:	A2549H-2XNP

Payment & Shipping Terms:

Minimum Order Quantity:	5000pcs
Price:	negotiated
Packaging Details:	Reel, Tube(Pipe), Tape, Bag or as required
Delivery Time:	5 to 8 working days after payment checked
Payment Terms:	TT, Western Union, PayPal, L/C
Supply Ability:	28000K pcs per month

Contact Now

Detailed Product Description

Category:	Housing	Row Number:	Dual
Mounting Type:	Standard On Board	Wire Range:	AWG26# To 22#
Application:	Signal, PCB Board-in	Matched Housing:	A2548 Series Pin Box
High Light:	Pcb To Wire Connectors , Board To Wire Connectors

2.54mm pitch connector wire to board tin-plated finish terminals
1, Detailed specification of product:

1.Basic information:

Color: Black
Housing Material: PBT
Flammability: 94V-0
Pitch:2.54mm
Circuits: 10pins, 16pins, 20pins, 26pins, 30pins, 34pins 40pins.
Insulation O.D.: 1.70mm
Terminal materials: Phosphor bronze
Finish terminal: Tin-plated type
Matched terminal: A2549 series terminal

2. Electrical characteristic:

Current Rating: 3A AC DC
Voltage Rating: 250V AC, DC
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000mΩ
Withstanding Voltage: 1500V AC/minute

3. Mechanical characteristic:

Temperature Range:-25°C ~+85°C
Terminal Insertion Force:1.00kgf (Max.)
Terminal/Housing Retention Force:1.50kgf (Min.)
Pin Retention Force:1.50kgf (Min.)

Other detailed data please check the pictures as below.

2, Related engineering drawing and testing report

The attached picture is our standard engineering drawing and report for your reference, it will help you to
know our product feature, then you can choose the right models.

Terminal dimension drawing

Mechanical Performance

Test Description		Procedure	Requirement
5-1	Actuator Insertion & Withdrawal Force	Insert and withdraw connectors at the speed rate of 25±3mm / minute.	Refer to paragraph 7
5-2	Crimping Pull Out Force	Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8)	AWG#22	3.0kgf (Min)
			AWG#24	2.0kgf (Min)
			AWG#26	1.5kgf (Min)
5-3	Terminal Insertion Force.	Insert the crimped terminal into the housing.	1.00kgf (Max.)
5-4	Terminal/Housing Retention Force.	Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing.	1.50kgf (Min.)
5-5	Pin Retention Force	Apply axial push force at the speed rate of 25±3mm / minute	1.50kgf (Min.)
5-6	Durability	When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute.	Contact Resistance 30mΩ (Max.)
5-7	Vibration	Amplitude: 1.5mm P-P Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes. (Based upon MIL-STD-202 Method 201A)	Appearance No Damage. Contact Resistance 30mΩ (Max.) Discontinuity 1 μsec.(Max.)
5-8	Physical Shock	490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)

3,The application of this series product

Please kindly check the attached picture, you can know its' applicated range directly. It is ideal for most of household appliance, computer, communication device. By the way, all of this series prodcut are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.
2.54mm pitch RA connector Equivalent I/O connectors Wire to Board Crimp style Connectors
