| Place of Origin: | China |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A2211 |
| Minimum Order Quantity: | 5000 PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Carton / Paper pots |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 1000 pcs per day |
| Product Name: | A2211T Terminal | Pitch: | 2.00mm |
|---|---|---|---|
| Used In: | A2006 And A2211 Series Housing | Material: | Phosphor Bonze |
| Wire Range: | AWG#22-#28 | Fire-protection Rating: | UL 94V-0 |
| Finish: | Tin-plated | ||
| High Light: | Male Header Connectors,6 Pin Connector |
||

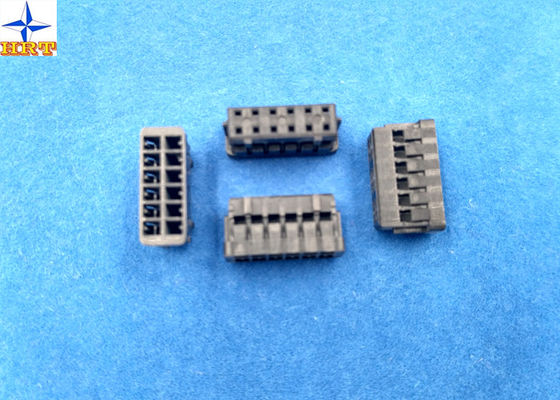

Wire to board connector Pitch 2.00mm Phoshor Bronze Tin-plated Battery terminal connector
Description:
1.Terminals E-Stamping before Tin-plated ,Tin-plated we calling A2211-TPe, Minimum packing quantity is 4,000pcs/Reel. The daily production capacity is 200 to 300 KPCS.
2.Terminals' wire range :AWG #22--#28 ,insulation OD is1.4mm(Max)
Specifications:
| Test Description | Procedure | Requirement |
|
Contact Resistance |
Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) | 10mΩ (Max.) |
| Insulation Resistance | Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) | 1000MΩ (Min.) |
| Dielectric Withstanding Voltage | Mate connectors, apply 1000V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) | No Breakdown. |
| Contact Resistance on Crimped Portion | Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.. | 5mΩ (Max.) |
Electrical:
| Voltage rated | 250V AC ,DC |
| Current rated | 2A AC,DC |
| Withstand voltage | 800VAC/minute |
| Insulation resistance | 1000MΩ Min |
| Contact resistance | 30mΩ Max |
| Operating temperature | -25°C~85°C |
Reference informations:
Material Wafer: PA66 , UL94V-0
Pin:Brass/Tin-plated
Mates with A2501 series single row housing
Drawing:
Environmental Performance And Others
| Test Description | Procedure | Requirement | |
| 6-1 | Temperature Rise | Carrying rated current load.(Based upon UL 498) | 30℃(Max.) |
| 6-2 | Heat Resistance | 85±2℃, 96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A) |
Appearance No Damage. Contact Resistance 40mΩ (Max.) |
| 6-3 | Cold Resistance | -25±3℃,96 hours (Based upon JIS C0020) | |
| 6-4 | Humidity |
Temperature: 40±2℃ Relative Humidity : 90~95% Duration: 96 hours (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B) |
Appearance No Damage. Contact Resistance 40mΩ (Max.) Insulation Resistance 1000MΩ (Min.) Dielectric Withstanding Voltage Must meet 4-3 |
| 6-5 | Temperature Cycling |
5 cycles of: a) -55℃ 30 minutes b) +85℃ 30 minutes (Based upon JIS C0025) |
Appearance No Damage. Contact Resistance 40mΩ (Max.) |
| 6-6 | Salt Spray | Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B) | |
| 6-7 | SO2 Gas |
24 hours exposure to 50±5ppm. SO2 gas at 40±2℃. |
|
| 6-8 | NH3 Gas | 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution. | |
| 6-9 | Solderability |
Soldering Time: 5±0.5 sec. Solder Temperature: 245±5℃ |
Solder Wetting 95% of immersed area must show no voids, pin holes |
| 6-10 | Resistance to Soldering Heat |
Solder pot method Soldering time: 10±0.5 sec. Solder Temperature: 260±5℃ Solder iron method Soldering Time: 5±0.5 sec. Solder Temperature: 370℃ ~ 400℃ |
Appearance No Damage. |
Quality:
The world's xinpei Plastic& metal electronic Co.,Ltd.to provide customers with high efficiency service responsibility, forge ahead, the endess pursuit
Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.
1. Manufactured under strict controls.
2. ISO 9001:2008
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
7. Active Environmental policy
8. Every module tested 3times (not just batch tested)
Service:
Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .
HRT Offer good pre-sales & after-sales service &Strong technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save
3. time.
4. Free Samples:10~20 PCS of each part number
5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
6. Customer complaint:24-48 hours reply 8D report
7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement, or repair
8. kits if customers are not satisfied)
