Dual Row Circuit Board Wire Connectors With 1.25mm Pitch Wire To Board Type Housing

Dual Row Circuit Board Wire Connectors With 1.25mm Pitch Wire To Board Type Housing

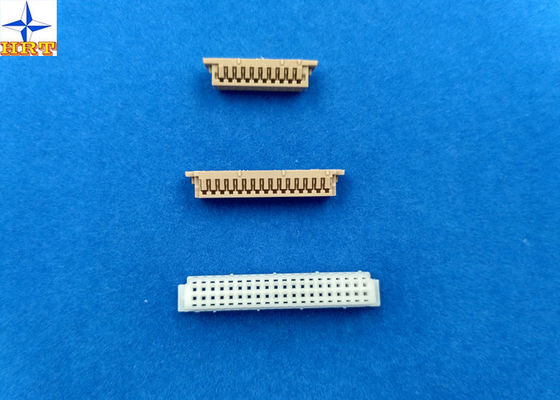

    • Dual Row Circuit Board Wire Connectors With 1.25mm Pitch Wire To Board Type Housing
    • Dual Row Circuit Board Wire Connectors With 1.25mm Pitch Wire To Board Type Housing
    • Dual Row Circuit Board Wire Connectors With 1.25mm Pitch Wire To Board Type Housing
    • Dual Row Circuit Board Wire Connectors With 1.25mm Pitch Wire To Board Type Housing
  • Dual Row Circuit Board Wire Connectors With 1.25mm Pitch Wire To Board Type Housing

    Product Details:

    Place of Origin: Dongguan, China(mainland)
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A1252H-2XNP

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: USD0.001 to 0.005 per pcs
    Packaging Details: Tube(pipe) with outside paper carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    Contact Now
    Detailed Product Description
    Color: White Pitch: 1.25mm
    Wafer Materials: Nylon66, UL94V-0 Wire Range: AWG30# To 26#
    Packaging Type: Bags Suitable Wafer: A1252 Dual Row Series
    High Light:

    Printed Circuit Board Connectors

    ,

    Circuit Board Connections

    ,

    1.25mm Pitch Circuit Board Wire Connectors

    1, Detailed specification of product:



    1. Basic information:

    • Color: White
    • Pitch: 1.25mm
    • Circuits: 10/12/14/20/30/36/40/42/50positions
    • Insulation O.D.: 1.00mm
    • Housing material: Nylon66,UL94V-0
    • Mounting type: wire to board
    • Application: Signal, wire to board
    • Terminal materials: Phosphor bronze
    • Finish terminal: Tin-plated or gold-flash type
    • Terminal Package: 15K pcs/reel
    • Terminal processing method: E-stamping before tin-plated



    2. Electrical characteristic:

    • Current Rating: 1A AC DC
    • Voltage Rating: 150V AC, DC
    • Contact Resistance: 30mΩ Max
    • Insulation Resistance: 500mΩ
    • Withstanding Voltage: 500V AC/minute



    3. Mechanical characteristic:

    • ​​Temperature Range:-25°C ~+85°C
    • Terminal Insertion Force: 0.50kgf (Max.)
    • Terminal/Housing Retention Force: 0.50kgf (Min.)
    • Pin Retention Force: 0.50kgf (Min.)



    Other detailed data please check the pictures as below.




    2, Introduction for this series products

    Please kindly notice these series product, you can buy it as a set, then we will offer you reasonable price.

                                                              A1252 series product
    Terminal A1252-T-A

    Connector Dual housing A1252H-2XNP & A1252HA-2XNP-1A & A1252HA-2XNP-1
    Single housing A1252H-NP

    Wafer Right angle type A1252WR-NP & W1252WR-SF-NP
    Vertical type A1252WV-NP & A1252WV-SF-NP & A1252WV-SF-2XNP & A1252WVA-SF-2XNP



                                                                             A1252 series demo

     Dual Row Circuit Board Wire Connectors With 1.25mm Pitch Wire To Board Type Housing



    3,Corresponding engineering drawing & test report

    Below file is our engineering drawing and testing report for further information. It's sure that it will be a

    good reference for you to know this series parts clearly.



                                                                    Drawing of dimension

    Dual Row Circuit Board Wire Connectors With 1.25mm Pitch Wire To Board Type Housing



                                                                          Test report

    Dual Row Circuit Board Wire Connectors With 1.25mm Pitch Wire To Board Type HousingDual Row Circuit Board Wire Connectors With 1.25mm Pitch Wire To Board Type Housing






    4, FAQ

    Q1: Are you manufacturer or trading company?
    A: We are a manufacturer with 12 years experience professional manufacturing company which specializes in producing, research and development, sales of variety of electronic connectors, terminals, wafer etc.

    Q2: How to control the quality of your products?
    A: Quality is life of our company. The QC staff control each procedure as per ISO9001 program. All part are100% tested before shipping.

    Q3: Where is your factory located, and how can we visit there?
    A: Our company is located in Dongguan city, Guangdong Province, China. It is close to shenzhen

    Q4: How can I get the sample?
    A: The sample is for free,but the transportation fee will be beared by customers.



    Q5: What are your products applied to?
    A: Our products are applied to automotive use, conmmunication equipment, industrial use, household appliance, electronics, etc.





    5, Application range of these product
    Please kindly check the below picture, you can know our main partner and customer directly. You can make wise choice like them. Our products are mainly used in wire to wire connecting, power, Inside of some machines and some appliances, or power of PCB board. By the way, all of this series prodcut are complied with REACH, UL, RoHS srandard. In order to protect the evironment furthur, some parts are halogen free.

    Dual Row Circuit Board Wire Connectors With 1.25mm Pitch Wire To Board Type Housing





    6, Delivery & Payment Way

    We can offer multiple delivery way for you, it will let you to recieve our part in a short time. Besides, flexible payment terms are available to save the commision charges both for us.

    Dual Row Circuit Board Wire Connectors With 1.25mm Pitch Wire To Board Type Housing
