| Place of Origin: | Dongguan, China(mainland) |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A2542HA-NP |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | bag with outside paper carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 600K pcs per month |

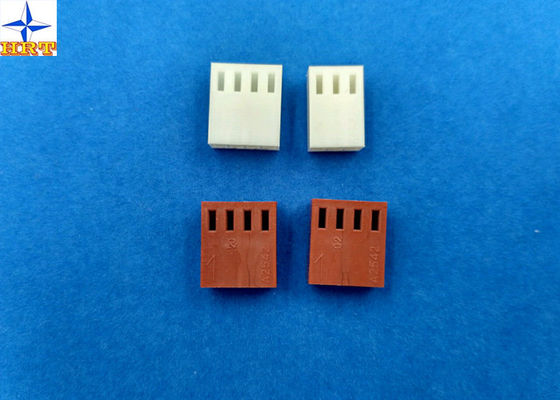

| Color: | White Or Red | Pitch: | 2.54mm |
|---|---|---|---|
| Material: | Nylon66 | Flammability: | UL94V-2 |
| Mating Lock: | With | Row: | Single |
| High Light: | Pcb To Wire Connectors,Board To Wire Connectors |
||
1, Detailed Datasheet of product
| Basic information | |||
| Suitable terminals | A2542T series | ||
| Suitable wafer | A2542W series | ||
| Mount type | Not on board | ||
| Wire range | AWG22# to 28# | ||
| Circuits | 2pins to 20pins | ||
| Wire Insulation Diameter | 1.57mm Max. | ||
| Terminal type | A2542TBE A2542TPE A2542GPE | ||
| Terminal package size | 10K pcs per reel | ||
| Electrical properties | |||
| Current Rating | 4A AC, DC | ||
| Voltage Rating | 250V AC, DC | ||
| Contact Resistance | 10mΩ Max | ||
| Insulation Resistance | 1000mΩ min | ||
| Withstanding Voltage | 1000V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Terminal Insertion Force | 1.00kgf (Max.) | ||
| Terminal/Housing Retention Force | 2.00kgf (Min.) | ||
| Pin Retention Force | 1.50kgf (Min.) | ||
| Other information please kindly check the following picture. | |||
2, Related drawing and report
The following data is for your refernce, it will be a good tools for you to understand our products.
Environmental Performance And Others
| Test Description | Procedure | Requirement | |
| 6-1 | Temperature Rise | Carrying rated current load.(Based upon UL 498) | 30℃(Max.) |
| 6-2 | Heat Resistance | 85±2℃, 96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) |
| 6-3 | Cold Resistance | -25±3℃,96 hours (Based upon JIS C0020) | |
| 6-4 | Humidity |
Temperature: 40±2℃ Relative Humidity : 90~95% Duration: 96 hours (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) Insulation Resistance 100MΩ (Min.) Dielectric Withstanding Voltage Must meet 4-3 |
| 6-5 | Temperature Cycling |
5 cycles of: a) -55℃ 30 minutes b) +85℃ 30 minutes (Based upon JIS C0025) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) |
| 6-6 | Salt Spray | Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B) | |
| 6-7 | SO2 Gas |
24 hours exposure to 50±5ppm. SO2 gas at 40±2℃. |
|
| 6-8 | NH3 Gas | 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution. | |
3, Applicated field of this product
This product are widely used in household appliance, computer, telecommunications device. Our parts
have very good performance in signal and current transmission. So it's accepted by some famouse company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth,BYD, LuXshare and more. You
can know this easily from attached pictures.
4, Why choose us
Our Quality: Quality is the life of HRT. We use only the best quality (original) materials to ensure the standard of our product. All products we sold out are strictly selected and tested by our QC department.
Warranty:We provide comprehensive after-sales service, including quality service, guidance services. We focus on customer needs in every detail. Please contact us if you have any question.
Payment:We accept payment via TT (Bank transfer), PayPal, Western Union, L/C. We accept bank transfer for large orders. For small order, it's better for you to pay via T/T or Western union.
Shipping:We offer as many shipping options as possible, including DHL, UPS, FedEx, TNT and EMS.
