| Place of Origin: | Dongguan, China(mainland) |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A2004H-2XNP |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Bag with outside carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 28 million pcs per month |
| Category: | LVDS Onnector | Suitable Wafer: | A2004WR/WV Dual Row Series |
|---|---|---|---|
| Flammability: | UL94V-0 | Circuits: | 4 To 48 Pins(position) |
| Material: | PA66 | Gender: | Receptacle |
| High Light: | Crimp Style Connector,LVDS Connectors,Dual Row LVDS Connector |
||

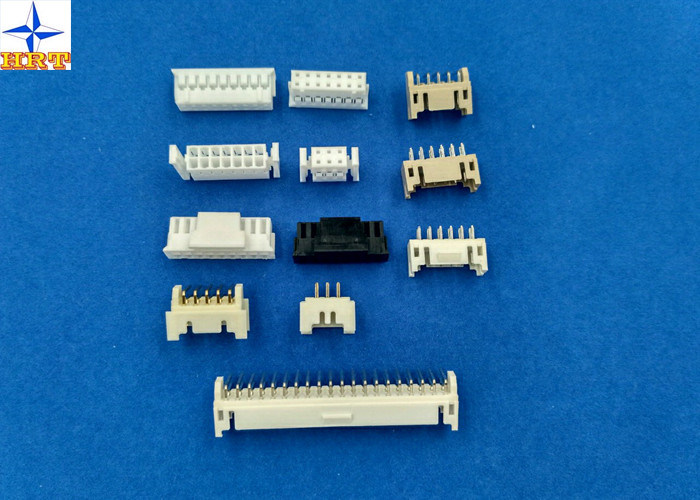

2.0mm Pitch Wire To Board Crimp Style Connectors Dual Row Without Lock
1, Detailed product feature information
| Basic size information | |||
| Suitable terminals | A2004 series | ||
| Application | Dual, wire-to-board | ||
| Pitch | 2.00mm | ||
| Color | white | ||
| Row | dual | ||
| Lock to mating part | without | ||
| Wire range | AWG22# to 28# | ||
| Wire insulation diameter | 1.50mm Max. | ||
| Terminal materials | phosphor bronze material, tin-plated or gold-flash finish | ||
| Electrical properties | |||
| Current Rating | 3.0 A AC, DC | ||
| Voltage Rating | 250 V AC, DC | ||
| Contact Resistance | 10 mΩ Max | ||
| Insulation Resistance | 1000 mΩ min | ||
| Withstanding Voltage | 800V AC/minute | ||
| Mechanical properties | |||
| Temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. | |||
2, Related drawing and report
Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.
Mechanical Performance
| Test Description | Procedure | Requirement | ||
| 5-1 | Actuator Insertion & Withdrawal Force | Insert and withdraw connectors at the speed rate of 25±3mm / minute. | Refer to paragraph 7 | |
| 5-2 | Crimping Pull Out Force | Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) | AWG#22 | 4.0kgf (Min) |
| AWG#24 | 3.0kgf (Min) | |||
| AWG#26 | 2.0kgf (Min) | |||
| AWG#28 | 1.0kgf (Min) | |||
| 5-3 | Terminal Insertion Force. | Insert the crimped terminal into the housing. | 1.50kgf (Max.) | |
| 5-4 | Terminal/Housing Retention Force. | Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. | 1.50kgf (Min.) | |
| 5-5 | Pin Retention Force | Apply axial push force at the speed rate of 25±3mm / minute | 1.50kgf (Min.) | |
| 5-6 | Latch Yield Strength | Mate connectors and pull apart until both latches break at the speed rate of 25±3mm / minute | 7.00kgf (Min.) | |
| 5-7 | Durability | When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. | Contact Resistance 20mΩ (Max.) | |
| 5-8 | Vibration |
Amplitude: 1.5mm P-P Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes. (Based upon MIL-STD-202 Method 201A) |
Appearance No Damage. Contact Resistance 20mΩ (Max.) Discontinuity 1 μsec.(Max.) |
|
| 5-9 | Physical Shock | 490m/s²｛50G｝,3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A) | ||
3, Application fied of these product
This product is developed for PDP, LCD, or small electronics equipment. Because we can controll NPL ratio under a very low value, so our parts are accepted by famouse and international company like TPV, Emerson, Amphenol Corporation, Skyworth, etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.
