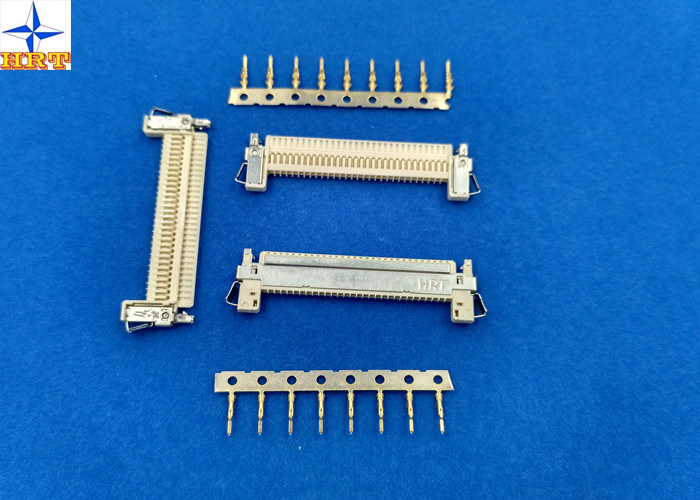

1 Row LVDS Display Connector , Wire To Board Connector 1.0mm Exact Size Equivalent

1 Row LVDS Display Connector , Wire To Board Connector 1.0mm Exact Size Equivalent

    • 1 Row LVDS Display Connector , Wire To Board Connector 1.0mm Exact Size Equivalent
    • 1 Row LVDS Display Connector , Wire To Board Connector 1.0mm Exact Size Equivalent
    • 1 Row LVDS Display Connector , Wire To Board Connector 1.0mm Exact Size Equivalent
  • 1 Row LVDS Display Connector , Wire To Board Connector 1.0mm Exact Size Equivalent

    Product Details:

    Place of Origin: Dongguan, China(mainland)
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A1006HK-30P

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000pcs
    Price: USD0.005 to 0.5 per pcs
    Packaging Details: bags and carton or customized term
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28000K pcs per month
    Contact Now
    Detailed Product Description
    Category: Housing Pitch: 1.0mm
    Row: Single Housing Material: Nylon46,UL94V-0
    Shell Material: Stainless Steel Secure Lock Structure: With
    High Light:

    Crimp Style Connector

    ,

    LVDS Connectors

    ,

    1 Row LVDS Display Connector

    1 Row LVDS Display Connector , Wire To Board Connector 1.0mm Exact Size Equivalent



    1, Product specification



      Basic size information
    Color white
    Pitch 1.0mm
    Terminal insulation O.D. 0.60mm(max)
    Terminal material phosphor bronze
    Finish terminal gold-flash
    Position 30 pins
    Wire range AWG#30 to #34

                                                              Electrical properties
    Current Rating 1A AC, DC
    Voltage Rating 200V AC, DC
    Contact Resistance 40mΩ Max
    Insulation Resistance 100mΩ
    Withstanding Voltage 500V AC/minute

                                                              Mechanical properties
    Temperature range -25℃ to 85 ℃





    2, Related drawing and report

    The below engineering drawing and testing report is for your reference, it's no doubt that it can help you to get right parts for your device.

    1 Row LVDS Display Connector , Wire To Board Connector 1.0mm Exact Size Equivalent






    3, The product application scope

    This product are widely fixed in household appliance, computer, telecommunication device. Our parts are accepted by famouse and international company like TPV, Emerson, Amphenol Corporation, LuXshare, BYD etc because of its' low defective rate. And the all products are approved by REACH, UL, RoHS internation standard. Some parts are halogen free to protect the green world.





    4, Our  intimate service for you



    We can offer you all kind of intimate service like prompt samples, fast delivery and flexible payment way.
