| Place of Origin: | Dongguan, China(mainland) |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A2016H |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Bag with outside carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 500 K pcs per month |
| Suitable Terminals: | A2015T Series | Suitable Pin Header: | A2016 Series Pin Header |
|---|---|---|---|
| Mating Lock To Part: | Without | Wire Range: | AWG 26# To 30# |
| Flammability: | UL94V-0 | Row No.: | Dual |
| High Light: | Crimp Style Connector,LVDS Connectors,Pitch 2mm LVDS Connectors |
||
2mm LVDS Connectors , Connector Wire To Board Double Row Wire Housing With Bump
1, The specification of the product like information of size, electrical and mechanical properties.
| Basic size information | |||
| Color | Black | ||
| Pitch |
2.00mm |
||
| Material | PBT(standard) | ||
| Nose No. of A2016H-2XNP | 0 | ||
| Nose No. of A2016H-N-2XNP | 1 | ||
| Nose No. of A2016H-3N-2XNP | 3 | ||
| Wire Termination Method | Crimping | ||
| Circuits | 4 to 60 pins | ||
| Wire Insulation Diameter | 1.30mm Max. | ||
| Mounting side | Standard on-Board | ||
| Terminals material | Phosphor bronze; gold-flash finish | ||
| Electrical properties | |||
| Current Rating | 2A AC, DC | ||
| Voltage Rating | 250V AC, DC | ||
| Contact Resistance | 20mΩ Max | ||
| Insulation Resistance | 1000mΩ min | ||
| Withstanding Voltage | 1000V AC/minute | ||
| Mechanical properties | |||
| Operating Temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. | |||
2, Related drawing and report
We wish our engineering drawing and report can help you to get the right parts from us easily.

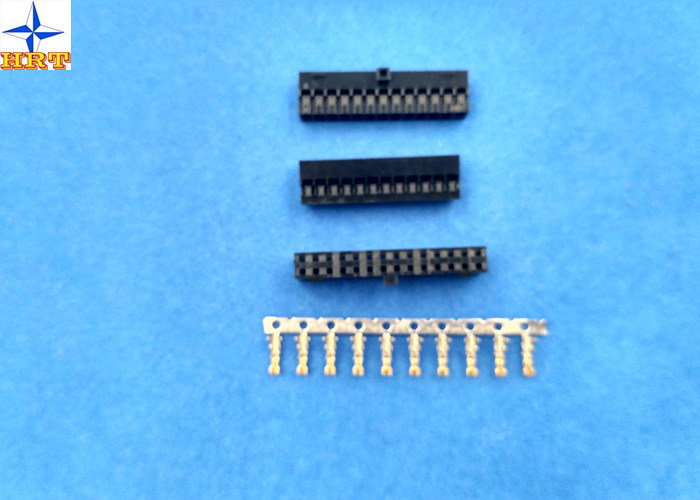

without nose type
with one nose type
with 3 nose type
Electrical Performance
| Test Description | Procedure | Requirement | |
| 4-1 |
Contact Resistance
|
Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) | 20mΩ (Max.) |
| 4-2 | Insulation Resistance | Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) | 1000MΩ (Min.) |
| 4-3 | Dielectric Withstanding Voltage | Mate connectors, apply 1000V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) | No Breakdown. |
| 4-4 | Contact Resistance on Crimped Portion | Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA. | 10mΩ (Max.) |
Actuator Insertion/Withdrawal Force
[Unit : kgf]
| Circuits | At Initial | Circuits | At Initial | Circuits | At Initial | |||
| Insertion (Max.) | Withdrawal (Min.) | Insertion (Max.) | Withdrawal (Min.) | Insertion (Max.) | Withdrawal (Min.) | |||
| Single | 0.20 | 0.05 | 2x15 | 6.00 | 1.50 | 2x29 | 11.60 | 2.90 |
| 2x02 | 0.80 | 0.20 | 2x16 | 6.40 | 1.60 | 2x30 | 12.00 | 3.00 |
| 2x03 | 1.20 | 0.30 | 2x17 | 6.80 | 1.70 | 2x31 | 12.40 | 3.10 |
| 2x04 | 1.60 | 0.40 | 2x18 | 7.20 | 1.80 | 2x32 | 12.80 | 3.20 |
| 2x05 | 2.00 | 0.50 | 2x19 | 7.60 | 1.90 | 2x33 | 13.20 | 3.30 |
| 2x06 | 2.40 | 0.60 | 2x20 | 8.00 | 2.00 | 2x34 | 13.60 | 3.40 |
| 2x07 | 2.80 | 0.70 | 2x21 | 8.40 | 2.10 | 2x35 | 14.00 | 3.50 |
| 2x08 | 3.20 | 0.80 | 2x22 | 8.80 | 2.20 | 2x36 | 14.40 | 3.60 |
| 2x09 | 3.60 | 0.90 | 2x23 | 9.20 | 2.30 | 2x37 | 14.80 | 3.70 |
| 2x10 | 4.00 | 1.00 | 2x24 | 9.60 | 2.40 | 2x38 | 15.20 | 3.80 |
| 2x11 | 4.40 | 1.10 | 2x25 | 10.00 | 2.50 | 2x39 | 15.60 | 3.90 |
| 2x12 | 4.80 | 1.20 | 2x26 | 10.40 | 2.60 | 2x40 | 16.00 | 4.00 |
| 2x13 | 5.20 | 1.30 | 2x27 | 10.80 | 2.70 | |||
| 2x14 | 5.60 | 1.40 | 2x28 | 11.20 | 2.80 | |||
3, FAQ
Q1: Are you manufacturer or trading company?
A: We are a manufacturer with 12 years experience professional manufacturing company which specializes in producing, research and development, sales of variety of electronic connectors, terminals, wafer etc.
Q2: How to control the quality of your products?
A: Quality is life of our company. The QC staff control each procedure as per ISO9001 program. All part are100% tested before shipping.
Q3: Where is your factory located, and how can we visit there?
A: Our company is located in Dongguan city, Guangdong Province, China. It is close to shenzhen
Q4: How can I get the sample?
A: The sample is for free,but the transportation fee will be beared by customers.
Q5: What are your products applied to?
A: Our products are applied to automotive use, conmmunication equipment, industrial use, household appliance, electronics, etc.
