|Place of Origin:||China|
|Minimum Order Quantity:||5000 PCS|
|Packaging Details:||Carton / Paper pots|
|Delivery Time:||5 to 8 working days after payment checked|
|Payment Terms:||TT, Western Union, PayPal, L/C|
|Supply Ability:||1000 pcs per day|
|Product Name:||A2004 HB-2*NP Housing||Pitch:||2.00mm|
|Type:||Wire To Board Connectors||Material:||PA66|
|Suitable:||A2004-T-B Series Terminal||Fire-protection Rating:||UL 94V-0|
|Mates With:||A2004WVB(WRB) Series Dual Row Wafer||Color:||White|
Crimp Style Connector,

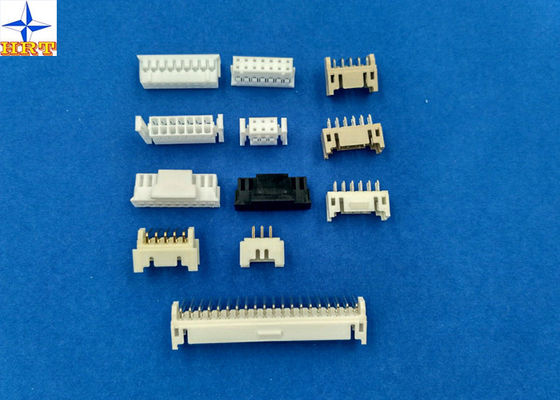

Dual row housing with lock Pitch 2.00mm PA66 LVDS Dibplay Connectors
1, A2004HA-2*NP(dual row housing with lock) A2004HB-2*NP(,dual row housing with lock) ,Terminal:A2004HA-2*NP (usad in A2004HA) A2004-TPE-B(used in A2004HB).
2, Housing used materials: PA66, Fire-protection rating is UL 94-V0. Minimum packing quantity is 1000pcs/bag.
3. Dual row housing we have 2*2Pto 2*23P ,The daily production capacity is 30 to 50 KPCS.
Material: Nylon 66,UL94V-0 Suitable A2004-T-B series terminal.
Mates withA2004WVB(WRB) series dual row wafer.
|Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)||20mΩ (Max.)|
|Insulation Resistance||Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)||1000MΩ (Min.)|
|Dielectric Withstanding Voltage||Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301))||No Breakdown.|
|Contact Resistance on Crimped Portion||Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.||5mΩ (Max.)|
3A AC/DC maximum
|Voltage rated||250V AC/DC|
|Withstand voltage||800V AC/minute|
|Insulation resistance||1000MΩ min|
|Contact resistance||10MΩ max|
|Operating temperature||-25 - 85°C|
Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
step are doing by ourself. So we can control the quality.
1. Manufactured under strict controls.
2. ISO 9001:2008 ISO 14001 : 2004
3. UL Certification
4. Reach Cetitifaction
5. RoHS compliance
6. OEM for PULSE
Design &Technical strength :
We have many more than 12 years experience in connector industry engineer can support your new
project.Design a new tooling time:30-45 workdays
Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .
HRT Offer good pre-sales & after-sales service &Strong technical support
1. New Project: Strong technical and ideal support your new design
2. Existing projects: Try to help customer to save the cost to offer the good quality product and save
4. Free Samples:10-20 PCS of each part number
5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.
6. Customer complaint:24-48 hours reply 8D report
7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,, or repair
kits if customers are not satisfied)
