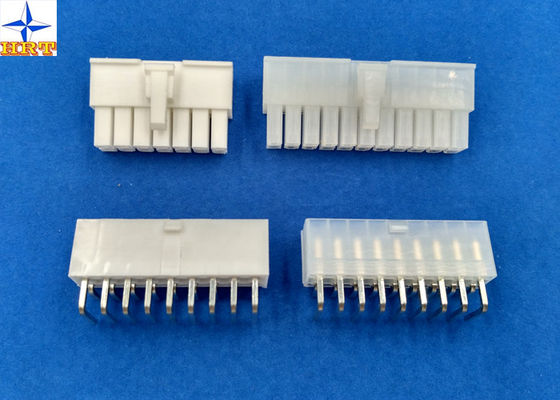

9A AC / DC Wire To Wire Power Cable Connectors With Tin Plated Brass Terminal Connectors

9A AC / DC Wire To Wire Power Cable Connectors With Tin Plated Brass Terminal Connectors

    • 9A AC / DC Wire To Wire Power Cable Connectors With Tin Plated Brass Terminal Connectors
    • 9A AC / DC Wire To Wire Power Cable Connectors With Tin Plated Brass Terminal Connectors
    • 9A AC / DC Wire To Wire Power Cable Connectors With Tin Plated Brass Terminal Connectors
  • 9A AC / DC Wire To Wire Power Cable Connectors With Tin Plated Brass Terminal Connectors

    Product Details:

    Place of Origin: Dongguan, China(mainland)
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: C4255HF-2XNP

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiated
    Packaging Details: Bag with outside carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    Contact Now
    Detailed Product Description
    Category: Power Cable Connector Suitable Terminals: C4255F Series
    Flammability: UL94V-0/2 Material: PA66
    Positions: 2 To 24 Circuits Gender: Female
    High Light:

    Power Splitter Cable

    ,

    Female Header Connector


    wire to wire connector with 4.2mm pitch power cable connector dual row housing


    1, Detailed information of product feature



    Basic dimension information
    Application Power, wire-to-wire
    Pitch 4.20mm
    Color White
    Row Dual/Double
    Bump Without
    Wire range AWG22# to 26#
    Wire insulation diameter  3.10mm Max
    Terminal materials Brass/Phosphor bronze material, tin-plated finish

                                     Electrical properties
    Current Rating 9.0A AC, DC
    Voltage Rating 600V AC, DC
    Contact Resistance 10mΩ Max
    Insulation Resistance 1000MΩ min
    Withstanding Voltage 1500V AC/minute

                                     Mechanical properties
    Temperature range -25℃ to 85 ℃
    Terminal Insertion Force 1.50kgf (Max.)
    Terminal/Housing Retention Force 3.00kgf (Min.)
    Pin Retention Force 3.00kgf (Min.)
    Latch Yield Strength 7.0kgf (Min.)
    Panel Mount Retention Force 16.0kgf (Min.)

          Other information please kindly check the following picture.


    2, Related drawing and report
    Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.

      9A AC / DC Wire To Wire Power Cable Connectors With Tin Plated Brass Terminal Connectors
     9A AC / DC Wire To Wire Power Cable Connectors With Tin Plated Brass Terminal Connectors


    Electrical Performance



    Test Description Procedure Requirement
    4-1



    Contact Resistance



    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4) 10mΩ (Max.)
    4-2 Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B) 1000MΩ (Min.)
    4-3 Dielectric Withstanding Voltage Mate connectors, apply 1500V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301) No Breakdown.
    4-4 Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.), 10mA. 5mΩ (Max.)



     Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#14 11.0kgf (Min)
    AWG#16 10.0kgf (Min)
    AWG#18 9.0kgf (Min)
    AWG#20 6.0kgf (Min)
    AWG#22 4.0kgf (Min)
    AWG#24 3.0kgf (Min)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 3.00kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 3.00kgf (Min.)
    5-6 Latch Yield Strength

    Mate connectors and pull apart until both latches break at the speed rate of

    25±3mm / minute

    7.0kgf (Min.)
    5-7 Panel Mount Retention Force Insert the housing into panel cut out, push housing opposite the way it was assembled until the locking barbs break at the speed rate of 25±3mm / minute. 16.0kgf (Min.)
    5-8 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
    5-9 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 20mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-10 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JISC0041/MIL-STD-202 Method 213B Cond. A)
