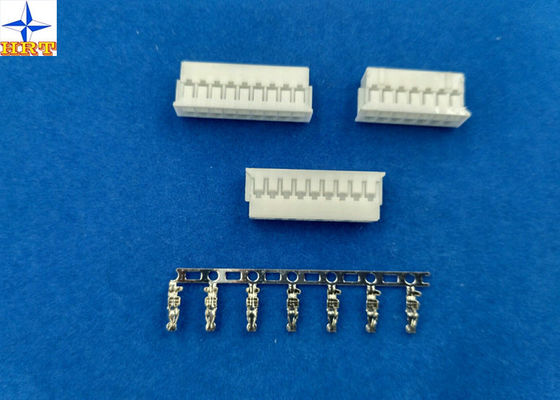

2.00mm Pitch Tin Plated Contact Dual Row Wire To Board Connector Fully Shrouded Header

2.00mm Pitch Tin Plated Contact Dual Row Wire To Board Connector Fully Shrouded Header

    • 2.00mm Pitch Tin Plated Contact Dual Row Wire To Board Connector Fully Shrouded Header
    • 2.00mm Pitch Tin Plated Contact Dual Row Wire To Board Connector Fully Shrouded Header
    • 2.00mm Pitch Tin Plated Contact Dual Row Wire To Board Connector Fully Shrouded Header
  • 2.00mm Pitch Tin Plated Contact Dual Row Wire To Board Connector Fully Shrouded Header

    Product Details:

    Place of Origin: Dongguan, China(mainland)
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A2004H-2XNP

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 pcs
    Price: Negotiated
    Packaging Details: Bag with outside carton
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 28 million pcs per month
    Contact Now
    Detailed Product Description
    Category: LVDS Onnector Suitable Wafer: A2004WR/WV Dual Row Series
    Flammability: UL94V-0 Circuits: 4 To 48 Pins(position)
    Material: PA66 Gender: Receptacle
    High Light:

    Crimp Style Connector

    ,

    Wire To Board Power Connector

    ,

    Shrouded Header LVDS Display Connector



    Gold - Flash Finish Dual Row Wire To Board Connector 2.00mm Without Lock A2004H2NP



    1, Detailed product feature information

    Basic size information
    Suitable terminals A2004 series
    Application Dual, wire-to-board
    Pitch 2.00mm
    Color white
    Row dual
    Lock to mating part without
    Wire range AWG22# to 28#
    Wire insulation diameter  1.50mm Max.
    Terminal materials phosphor bronze material, tin-plated or gold-flash finish

                                     Electrical properties
    Current Rating 3.0 A AC, DC
    Voltage Rating 250 V AC, DC
    Contact Resistance 10 mΩ Max
    Insulation Resistance 1000 mΩ min
    Withstanding Voltage 800V AC/minute

                                     Mechanical properties
    Temperature range -25℃ to 85 ℃
          Other information please kindly check the following picture.



    2, Related drawing and report

    Folllowing pictures are out testing report and exact engineering drawing for your information, please kindly check it, wish it can help you to get what you really need.



    2.00mm Pitch Tin Plated Contact Dual Row Wire To Board Connector Fully Shrouded Header

    Mechanical Performance



    Test Description Procedure Requirement
    5-1 Actuator Insertion & Withdrawal Force Insert and withdraw connectors at the speed rate of 25±3mm / minute. Refer to paragraph 7
    5-2 Crimping Pull Out Force Fix the crimped terminal, apply axial pull out force on the wire at the speed rat of 25±3mm / minute.(Based upon JIS C5402 6.8) AWG#22 4.0kgf (Min)
    AWG#24 3.0kgf (Min)
    AWG#26 2.0kgf (Min)
    AWG#28 1.0kgf (Min)
    5-3 Terminal Insertion Force. Insert the crimped terminal into the housing. 1.50kgf (Max.)
    5-4 Terminal/Housing Retention Force. Apply axial pull out force at the speed rate of 25±3mm / minute on the terminal assembled in the housing. 1.50kgf (Min.)
    5-5 Pin Retention Force Apply axial push force at the speed rate of 25±3mm / minute 1.50kgf (Min.)
    5-6 Latch Yield Strength Mate connectors and pull apart until both latches break at the speed rate of 25±3mm / minute 7.00kgf (Min.)
    5-7 Durability When mated up to 50 cycles repeatedly by the rate of 10 cycle per minute. Contact Resistance 20mΩ (Max.)
    5-8 Vibration

    Amplitude: 1.5mm P-P

    Sweep time: 10-55-10 Hz in 1 minute Duration: 2 hours in each X.Y.Z. axes.

    (Based upon MIL-STD-202 Method 201A)

    Appearance No Damage.

    Contact Resistance 20mΩ (Max.)

    Discontinuity 1 μsec.(Max.)

    5-9 Physical Shock 490m/s²{50G},3 strokes in each X.Y.Z. axes. (Based upon JIS C0041/MIL-STD-202 Method 213B Cond. A)




    3, Product's features

    *Double-row construction
    *The box contact supplies stable contact performance.
    *Fully shrouded header
    Product Profile
    Series A2004 series connector
    Category Wire to Board Crimp style Connectors
    Type Disconnectable type
    Crimp style, Double-row
