| Place of Origin: | Dongguan, China(mainland) |
| Brand Name: | HRT |
| Certification: | ISO9001/ ISO14001/UL/RoHS/REACH |
| Model Number: | A2016H |
| Minimum Order Quantity: | 5000 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Bag with outside carton |
| Delivery Time: | 5 to 8 working days after payment checked |
| Payment Terms: | TT, Western Union, PayPal, L/C |
| Supply Ability: | 500 K pcs per month |
| Suitable Terminals: | A2015T Series | Suitable Pin Header: | A2016 Series Pin Header |
|---|---|---|---|
| Mating Lock To Part: | Without | Wire Range: | AWG 26# To 30# |
| Flammability: | UL94V-0 | Row No.: | Dual |
| High Light: | LVDS Connectors,Wire To Board Power Connector,Double Row Lvds Display Connector |
||

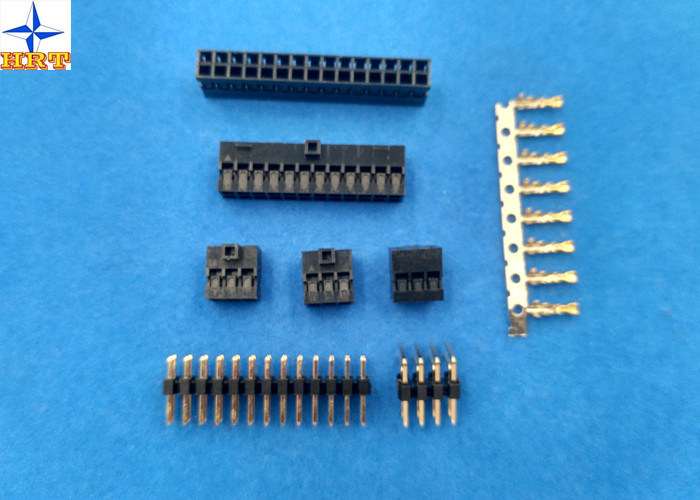

Pitch 2.00mm Lvds Display Connector Double Row Wire Housing With Bump
1, The specification of the product like information of size, electrical and mechanical properties.
| Basic size information | |||
| Color | Black | ||
| Pitch |
2.00mm |
||
| Material | PBT(standard) | ||
| Nose No. of A2016H-2XNP | 0 | ||
| Nose No. of A2016H-N-2XNP | 1 | ||
| Nose No. of A2016H-3N-2XNP | 3 | ||
| Wire Termination Method | Crimping | ||
| Circuits | 4 to 60 pins | ||
| Wire Insulation Diameter | 1.30mm Max. | ||
| Mounting side | Standard on-Board | ||
| Terminals material | Phosphor bronze; gold-flash finish | ||
| Electrical properties | |||
| Current Rating | 2A AC, DC | ||
| Voltage Rating | 250V AC, DC | ||
| Contact Resistance | 20mΩ Max | ||
| Insulation Resistance | 1000mΩ min | ||
| Withstanding Voltage | 1000V AC/minute | ||
| Mechanical properties | |||
| Operating Temperature range | -25℃ to 85 ℃ | ||
| Other information please kindly check the following picture. | |||
2, Related drawing and report
We wish our engineering drawing and report can help you to get the right parts from us easily.
without nose type
with one nose type
with 3 nose type
Testing report as following
Environmental Performance And Others
| Test Description | Procedure | Requirement | |
| 6-1 | Temperature Rise | Carrying rated current load.(Based upon UL 498) | 30℃(Max.) |
| 6-2 | Heat Resistance | 85±2℃,96 hours (Based upon JIS C0021/MIL-STD-202 Method 108A Cond. A) |
Appearance No Damage. Contact Resistance 40mΩ (Max.) |
| 6-3 | Cold Resistance | -25±5℃,96 hours (Based upon JIS C0020) | |
| 6-4 | Humidity |
Temperature: 40±2℃ Relative Humidity : 90~95% Duration: 96 hours (Based upon JIS C0022/MIL-STD-202 Method 103B Cond. B) |
Appearance No Damage. Contact Resistance 40mΩ (Max.) Insulation Resistance 100MΩ (Min.) Dielectric Withstanding Voltage Must meet 4-3 |
| 6-5 | Temperature Cycling |
5 cycles of: a) -55℃ 30 minutes b) +85℃ 30 minutes (Based upon JIS C0025) |
Appearance No Damage. Contact Resistance 40mΩ (Max.) |
| 6-6 | Salt Spray | Tin-plated 12 hours / Gold- plated 24 hours exposure to a salt spray from the 5±1% solution at 35±2℃. (Based upon JIS C0023/MIL-STD-202 Method 101D Cond. B) | |
| 6-7 | SO2 Gas |
24 hours exposure to 50±5ppm. SO2 gas at 40±2℃. |
|
| 6-8 | NH3 Gas | 40 minutes exposure to NH3 gas evaporating from 28% Ammonia solution. | |
| 6-9 | Solder-ability |
Soldering Time: 5±0.5 sec. Solder Temperature: 245±5℃ |
Solder Wetting 95% of immersed area must show no voids, pin holes |
| 6-10 | Resistance to Soldering Heat |
Solder pot method Soldering time: 10±0.5 sec. Solder Temperature: 260±5℃ Solder iron method Soldering Time: 5±0.5 sec. Solder Temperature: 370℃ ~ 400℃ |
Appearance No Damage. |
3, Applicated field for this prodcut
This product are widely used in household appliance, computer, communication device. Because we can controll NPL ratio under a low value, so our parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free. This product is developed for PDP, LCD, or small electronics equipment. Please notice the picture as below,
4, Our service
1. Quality is life, we establish our brand step by step (high quality).
2. Competitive price.
3. Attractive package.
4. Fast Delivery.
5. Excellent after-sale service.
6. Feel free to join our team and establish business relationship between us.
7. Welcome to inquiry us and send you our catalogue to know what we have.
You can have a direct understanding from the figure.
