Double Row PHD Connector , 2mm Pitch Crimp Connector Wire To Board

Double Row PHD Connector , 2mm Pitch Crimp Connector Wire To Board

    • Double Row PHD Connector , 2mm Pitch Crimp Connector Wire To Board
    • Double Row PHD Connector , 2mm Pitch Crimp Connector Wire To Board
    • Double Row PHD Connector , 2mm Pitch Crimp Connector Wire To Board
  • Double Row PHD Connector , 2mm Pitch Crimp Connector Wire To Board

    Product Details:

    Place of Origin: China
    Brand Name: HRT
    Certification: ISO9001/ ISO14001/UL/RoHS/REACH
    Model Number: A2004

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000 PCS
    Price: Negotiated
    Packaging Details: Carton / Paper pots
    Delivery Time: 5 to 8 working days after payment checked
    Payment Terms: TT, Western Union, PayPal, L/C
    Supply Ability: 1000 pcs per day
    Contact Now
    Detailed Product Description

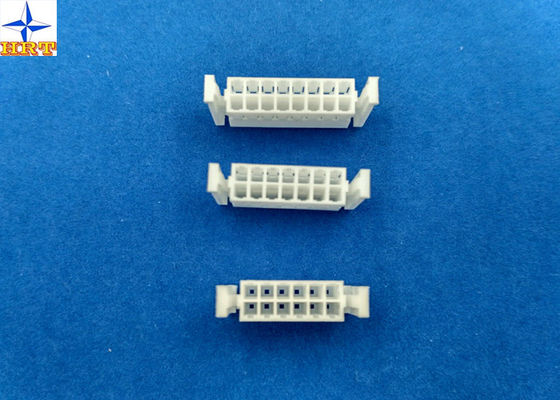

    Product Name: A2004 HB-2*NP Housing Pitch: 2.00mm
    Type: Wire To Board Connectors Material: PA66
    Suitable: A2004-T-B Series Terminal Fire-protection Rating: UL 94V-0
    Mates With: A2004WVB(WRB) Series Dual Row Wafer Color: White
    High Light:

    Crimp Style Connector

    ,

    LVDS Connectors

    ,

    Crimp Style LVDS Conenctor

    Description:



    1, A2004HA-2*NP(dual row housing with lock)  A2004HB-2*NP(,dual row housing with lock) ,Terminal:A2004HA-2*NP (usad in A2004HA) A2004-TPE-B(used in A2004HB).

    2, Housing used materials: PA66, Fire-protection rating is UL 94-V0. Minimum packing quantity is 1000pcs/bag.

    3. Dual row housing we have 2*2Pto 2*23P ,The daily production capacity is 30 to 50 KPCS.



    Reference Informations:

      Material: Nylon 66,UL94V-0 Suitable A2004-T-B series terminal.

      Mates withA2004WVB(WRB) series dual row wafer.



    Specifications:



    Test Description Procedure Requirement

    Contact Resistance

    Mate connectors, measure by dry circuit, 20mV max., 10mA.(Based upon JIS C5402 5.4)    20mΩ (Max.)
    Insulation Resistance Mate connectors, apply 500V DC between adjacent terminal or ground. (Based upon JIS C5402 5.2/MIL-STD-202 Method 302 Cond. B)    1000MΩ (Min.)
    Dielectric Withstanding Voltage Mate connectors, apply 800V AC (rms) for 1 minute between adjacent terminal or ground. (Based upon JIS C5402 5.1/MIL-STD-202 Method 301))    No Breakdown.
    Contact Resistance on Crimped Portion Crimp the applicable wire on to the terminal, measure by dry circuit, 20mV (Max.)., 10mA.     5mΩ (Max.)



    Current rated
        3A AC/DC maximum
    Voltage rated       250V AC/DC
    Withstand voltage      800V AC/minute
    Insulation resistance      1000MΩ min
    Contact resistance      10MΩ max
    Operating temperature      -25 - 85°C





    Quality:

    Except the plating ,From Design tooling, stamping ,Injection molding, assemble, Testing ,packing .All the
    step are doing by ourself. So we can control the quality.



    1. Manufactured under strict controls.

    2. ISO 9001:2008 ISO 14001 : 2004

    3. UL Certification

    4. Reach Cetitifaction

    5. RoHS compliance

    6. OEM for PULSE



    Design &Technical strength :



    We have many more than 12 years experience in connector industry engineer can support your new
    project.Design a new tooling time:30-45 workdays



    Double Row PHD Connector , 2mm Pitch Crimp Connector Wire To BoardDouble Row PHD Connector , 2mm Pitch Crimp Connector Wire To Board





    Service:



    Our company for the purpose of "arduous pioneering, pure devotees of" "scientific management ,quality first ,service ,reputation first" ,and continuously improve product quality and perfect service , high-efficiency business management ,to provide customer with quality products and satisfactory service .



    HRT Offer good pre-sales & after-sales service &Strong technical support



    1. New Project: Strong technical and ideal support your new design

    2. Existing projects: Try to help customer to save the cost to offer the good quality product and save

    3. time.

    4. Free Samples:10-20 PCS of each part number

    5. Shipping Fee :We can get 80% off from DHL/UPS/TNT/FedEx, keeping safe and fast.

    6. Customer complaint:24-48 hours reply 8D report

    7. Warranty : 24 months ( Merchandise are promised to be promptly returned, replacement,, or repair

    kits if customers are not satisfied)
